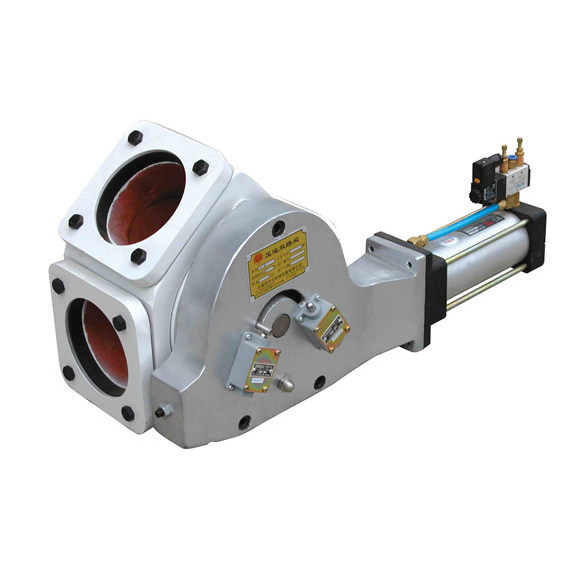

As a premier manufacturer and supplier of advanced industrial fluid control equipment, we engineer high-performance plug valves designed to optimize complex conveying systems.
Engineered with a highly responsive dual-channel architecture for independent flow control and seamless path switching.
Crafted by a trusted supplier utilizing premium stainless steel and imported seals to guarantee zero-leakage performance.
Sourced directly from the manufacturer to ensure uncompromising structural integrity, rapid system integration, and exceptional long-term cost efficiency for your facility.
Model | Inner Diameter | Angle of the pipe | Max. Working Pressure | Dimension |
THFX65 | 65mm | 60° | 100Kpa | 460x225x215mm |
THFX80 | 80mm | 60° | 100Kpa | 488x249x238mm |
THFX100 | 100mm | 60° | 100Kpa | 505x266x265mm |
THFX125 | 125mm | 60° | 100Kpa | 605x310x313mm |
THFX150 | 150mm | 60° | 100Kpa | 650x336x352mm |
THFX175 | 175mm | 60° | 100Kpa | 671x373x390mm |
THFX200 | 200mm | 60° | 100Kpa | 721x400x488mm |
Equipping your facility with this advanced routing component means investing in unparalleled operational continuity. The architecture is specifically designed to eliminate the common friction points that plague traditional conveying setups, ensuring your production rhythm remains flawless.
Millisecond Actuation: The high-precision electromagnetic control module executes path switching in ≤ 0.3 seconds, ensuring immediate response to automated system commands.
Exceptional Flow Accuracy: Maintaining a flow control accuracy of ±2%, it guarantees that precise material volumes reach their designated processing stages, significantly minimizing ingredient waste.
Zero Cross-Contamination: The distinct dual-channel design physically isolates different material streams, which is absolutely critical when handling sensitive food ingredients or reactive chemical agents.
Extended Operational Lifespan: Engineered for uncompromising longevity, the robust build delivers an impressive 8-12 years of service life, keeping the annual failure rate strictly below 1.5%.
Acoustic and Tactile Refinement: The internal components are machined to such tight tolerances that operation produces minimal vibration and noise, contributing to a safer, quieter, and highly efficient facility floor.
Procurement teams understand that a valve's true value is measured by its survival in harsh, unforgiving environments. We construct our equipment using premium-grade alloys that actively resist the degrading effects of abrasive particulates and corrosive fluids, ensuring decades of reliable service.
Premium Stainless Steel Matrix: Forged from high-grade 304 or optional 316L stainless steel, the main body provides an impenetrable barrier against oxidation, moisture, and structural fatigue.
Anti-Corrosion Defenses: The internal surfaces undergo specialized treatments to withstand aggressive chemical reagents, ensuring the metal does not pit, rust, or degrade over time.
Abrasion-Resistant Pathways: When handling granular materials ranging from 0.05mm to 80mm, the hardened internal pathways resist scoring and scratching, maintaining a smooth, frictionless flow.
Chemical Resilience: Specifically formulated to resist various forms of chemical attack, safeguarding the structural integrity in demanding processing plants and preventing microscopic material contamination.
Fluctuating thermal conditions and intense pipeline pressures can compromise lesser equipment, leading to catastrophic system failures. This unit is structurally reinforced to maintain absolute dimensional stability, preventing warping or blowout under extreme systemic stress.
High-Pressure Tolerance: While the standard operational rating sits at a reliable 100Kpa, the heavy-duty valve body is engineered to withstand extreme internal pressures up to 1.6MPa without the slightest deformation.
Broad Thermal Operating Range: Capable of functioning flawlessly in freezing environments as low as -20℃ and scorching conditions up to 120℃, making it highly versatile for diverse geographical locations and thermal processing stages.
Thermal Shock Resistance: The alloy composition and uniform wall thickness prevent micro-fractures during rapid temperature shifts, ensuring the housing remains completely intact during steam cleaning or cryogenic fluid transfers.
Explosion-Proof Structural Integrity: The robust casting and secure bolting mechanisms provide a fail-safe against sudden pressure spikes, protecting both your personnel and your surrounding infrastructure from hazardous blowouts.
Fugitive emissions and material seepage are not just maintenance headaches; they are direct threats to facility safety, environmental compliance, and product purity. We have engineered a sealing architecture that guarantees absolute, uncompromising containment.
Imported Fluorine Rubber Seals: Utilizing premium, imported elastomeric compounds, the sealing rings maintain their exceptional elasticity and shape memory even after thousands of rapid actuation cycles.
Absolute Zero Leakage: The precise mating of the internal core to the valve seat achieves a leakage rate of strictly zero, ensuring dangerous chemicals or expensive fluids remain entirely within the pipeline.
Double Isolation Mechanics: The internal geometry provides a redundant sealing barrier, effectively isolating the upstream and downstream channels to prevent any microscopic cross-contamination between fluid paths.
GMP and Food-Grade Compliance: The flawless containment prevents external atmospheric contaminants from entering the stream, perfectly aligning with the strict hygiene requirements of pharmaceutical cleanrooms and food processing facilities.
Achieving mastery over complex fluid dynamics requires a structural design that prioritizes both geometric efficiency and intelligent control. The internal architecture of this unit is sculpted to minimize pressure drops while maximizing routing flexibility and precision.
Intelligent Dual-Channel Routing: The specialized 60-degree pipe angle and dual-path configuration allow for the immediate diversion of materials, acting as a highly efficient, automated traffic controller for your pipeline.
Eccentric Precision: The internal core rotates with absolute concentricity, ensuring that the transition between open and closed states is exceptionally smooth, eliminating material shearing, crushing, or blockages.
Micro-Calibrated Flow Control: Capable of modulating the flow volume with an exceptional accuracy of ±2%, allowing facility operators to fine-tune ingredient dosing with total confidence and repeatability.
Unrestricted Full-Bore Flow: When fully open, the internal passageway aligns perfectly with the pipe diameter (available from 65mm up to 200mm), preventing material bridging and ensuring maximum volumetric throughput.
Complex machinery should not require a team of specialists to operate or repair. We have prioritized intuitive interfaces and modular construction to drastically reduce your facility's operational overhead, training requirements, and unexpected downtime.
Dual-Mode Interface: The integrated control panel seamlessly toggles between fully automated system commands and manual override, giving floor operators ultimate flexibility during unexpected scenarios or power fluctuations.
Rapid-Release Valve Core: The intelligently designed detachable core allows maintenance teams to access internal components swiftly, reducing standard maintenance turnaround times by an impressive 35%.
In-Line Servicing Capability: Routine inspections and seal replacements can often be executed without entirely unbolting the heavy unit from the pipeline network, preserving your infrastructure's integrity.
Low-Torque Actuation: The polished internal surfaces and inherent lubricity of the seals mean the valve requires minimal physical or electrical force to actuate, reducing wear and tear on the driving motors and linkages.
Integrating new components into an established industrial framework requires absolute assurance of compliance and safety. This equipment has been rigorously tested against the most demanding global standards to ensure it meets your facility's strict compliance mandates.
Global Manufacturing Standards: Engineered in strict accordance with ISO and GB/T quality management frameworks, ensuring every unit off the assembly line delivers identical, flawless, and repeatable performance.
Heavy-Industry Compliance: The structural design, wall thickness, and pressure-retaining capabilities align with stringent ANSI protocols, making it a trusted component for large-scale, high-stakes industrial deployments.
Harsh Environment Readiness: The material composition and sealing technology meet NACE requirements for resistance to chemical stress cracking, proving its capability in highly corrosive processing environments.
Rigorous Factory Testing: Before dispatch, every single unit undergoes comprehensive hydrostatic and pneumatic testing, providing documented proof of its pressure resilience and zero-leakage guarantee.
Versatility is the cornerstone of a truly exceptional industrial component. Whether your facility is moving delicate pharmaceutical powders or abrasive chemical slurries, this unit integrates flawlessly into your existing architecture without requiring massive overhauls.
Broad Media Compatibility: Effortlessly handles a massive spectrum of materials, from ultra-fine 0.05mm powders to substantial 80mm granular solids, as well as water, industrial oils, and aggressive chemical reagents.
Food & Beverage Processing: Perfect for routing distinct ingredients like flour, starch, sugars, and condiment powders without cross-mixing, ensuring absolute adherence to food safety and hygiene standards.
Pharmaceutical Manufacturing: The zero-leakage and easy-to-clean design make it an essential component for transferring active pharmaceutical ingredients (APIs) and auxiliary materials in strict GMP environments.
Universal System Integration: Designed with standardized connections and adaptable control protocols, it is fully compatible with over 95% of existing industrial automated conveying systems, storage tanks, and upstream feeding mechanisms.
Sourcing critical infrastructure components requires a partner who understands the high stakes of industrial production. We are dedicated to providing equipment that fundamentally enhances your operational capabilities, backed by unwavering support.
Direct Manufacturer Advantage: By controlling the entire fabrication process, we provide premium-grade equipment at highly competitive price points, maximizing your procurement budget without sacrificing quality.
Uncompromising Quality Control: Our manufacturing facilities utilize advanced mechanical vibration simulation and comprehensive detection systems to guarantee flawless performance straight out of the crate.
Deep Engineering Expertise: Backed by over 20 years of experience in the chemical, food, and material processing sectors, our engineering team designs solutions that address real-world industrial challenges.
Customized Turnkey Solutions: We do not just supply standard parts; we offer deep engineering consultation and customizable machine components tailored precisely to your unique pipeline architecture.
Dedicated After-Sales Support: Our commitment extends far beyond the point of delivery, providing comprehensive technical resources, rapid parts replacement, and expert guidance to ensure decades of reliable operation.
The internal pathways are meticulously engineered to handle a highly diverse range of media. It efficiently processes powdery and granular materials with particle sizes ranging from 0.05mm up to 80mm. Furthermore, the robust sealing and smooth bore make it fully capable of managing various fluids, including water, industrial oils, and complex chemical reagents, without bridging, clogging, or experiencing severe pressure drops.
The dual-channel architecture utilizes a highly precise, eccentric rotating core coupled with imported fluorine rubber seals. When the path switches—which happens in an ultra-fast response time of ≤ 0.3 seconds—the seals create an absolute, zero-leakage barrier between the two channels. This physical and mechanical isolation ensures that distinct materials, such as different food ingredients or reactive chemical reagents, never mix within the valve body.
Absolutely. The unit features an integrated control panel designed for maximum adaptability, supporting both manual and automatic dual-mode operations. It is specifically engineered to be compatible with 95% of standard industrial conveying systems. This allows it to seamlessly communicate with upstream feeding mechanisms, downstream processing equipment, and central facility control software, significantly reducing the need for manual intervention.
The equipment is built for extreme longevity, boasting a projected service life of 8 to 12 years with an exceptionally low annual failure rate of less than 1.5%. When routine maintenance or inspection is required, the intelligently designed detachable valve core allows technicians to access internal components swiftly. This modular approach reduces overall maintenance time by approximately 35% and does not require highly specialized training to execute.
We utilize high-grade 304 or optional 316L stainless steel for the primary construction. These premium alloys provide exceptional resistance to oxidation, moisture, and chemical corrosion. Combined with its ability to withstand extreme working temperatures (-20℃ to 120℃) and internal pressures up to 1.6MPa, the housing remains structurally sound and visually pristine even in harsh chemical processing plants or high-humidity manufacturing environments.
