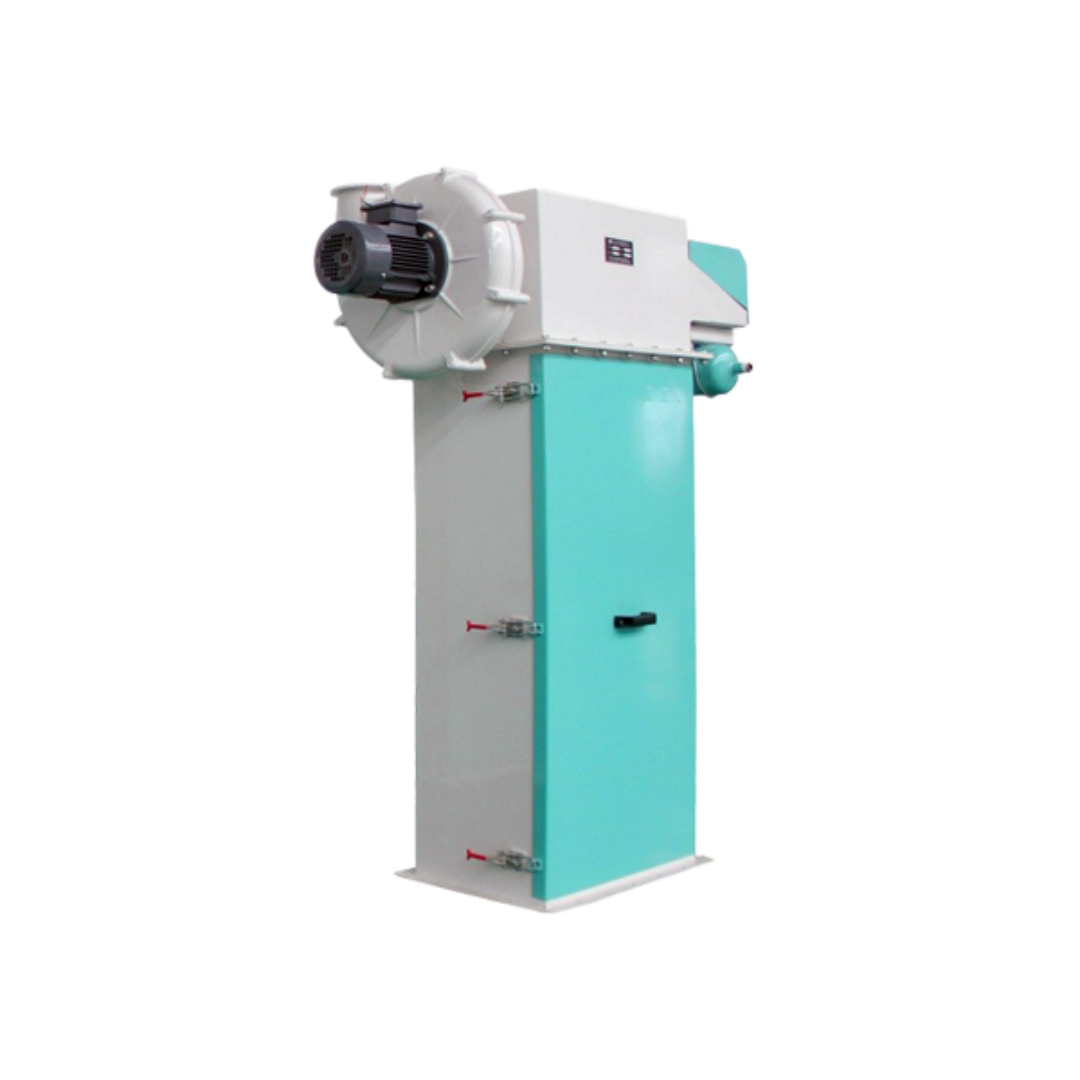

The Bin Top Dust Filter stands as a critical guardian of your facility's air quality and material integrity. When you approach the unit, the meticulously welded seams and the solid, vibration-resistant casing immediately convey a sense of industrial-grade durability. Running your hand along the exterior, you feel the smooth, corrosion-resistant finish designed to withstand the rigorous micro-environments of intensive milling and powder conveying. As the system operates, it emits a low, steady hum—a testament to its finely tuned aerodynamic design that quietly captures escaping particulates before they can breach the storage silo.
This equipment goes beyond simple filtration; it fundamentally upgrades your operational hygiene. By actively drawing in displaced air and trapping microscopic flour dust, it prevents the gritty, suffocating buildup that typically plagues processing floors. Your facility smells cleaner, your machinery remains free of abrasive powder coating, and your workforce breathes easier. The thoughtful engineering translates into a tangible reduction in daily cleaning protocols, allowing your operational focus to remain entirely on production output rather than constant environmental mitigation.
Model | Style | Sack | Filter Area | Air Volume | Dimension |
LYDH-4 | Horizontal | 150x1200mm | 2.26m2 | 271.3~542.6m3/h | 1356x585x1714mm |
LYDH-6 | Horizontal | 150x1200mm | 3.39m2 | 406.9~813.9m3/h | 1536x585x1714mm |
LYDV-4 | Vertical | 150x1200mm | 1.36m2 | 162.8~325.6m3/h | 1131x470x602mm |
LYDV-6 | Vertical | 150x1200mm | 2.03m2 | 244.2~488.3m3/h | 1131×470×740mm |
Elevating the standard for particulate management, this filtration unit transforms how industrial facilities handle airborne powder displacement. It is not merely an accessory, but a core component that actively safeguards your mechanical assets and workforce.
Exceptional Particulate Containment: Actively captures displaced dust during high-velocity silo filling, ensuring zero powder escapes into the ambient facility air.
Universal Sack Sizing: Utilizes a standardized 150x1200mm filter sack across all models, drastically simplifying inventory management for replacement parts.
Acoustic Dampening Construction: The heavy-gauge housing absorbs operational vibrations, resulting in a remarkably quiet performance that will not disrupt the factory floor.
Weather-Resistant Exterior: Treated with a resilient industrial coating that repels moisture and prevents oxidation, making it suitable for both indoor and semi-exposed silo tops.
Streamlined Integration: Engineered as an essential auxiliary device, it bolts effortlessly onto existing flour storage and conveying equipment with minimal downtime.
Achieving rigorous environmental compliance is non-negotiable for modern procurement professionals. This filtration system delivers uncompromising interception rates, ensuring your facility effortlessly meets stringent occupational health and safety benchmarks.
Micro-Particulate Interception: The advanced filter media captures up to 99.9% of ultra-fine flour and powder dust, preventing microscopic airborne hazards from polluting the workspace.
Occupational Health Alignment: By drastically reducing airborne particulate matter, the unit ensures your workshop air quality consistently aligns with strict global environmental and safety regulations.
Cross-Contamination Prevention: Secures the integrity of your product by ensuring that external contaminants cannot enter the silo through the exhaust vents during pressure equalization.
Visual Emission Eradication: Completely eliminates the visible dust plumes typically associated with pneumatic conveying and silo venting, maintaining a pristine exterior facility appearance.
Powder processing equipment is notoriously prone to blinding and blockages, which can halt entire production lines. We engineered this unit with an aggressive, automated cleaning architecture that continuously purges the filter media, guaranteeing uninterrupted airflow.
Automated Dust Cake Release: The internal mechanism effectively strips compacted powder cakes from the filter surface, returning the trapped material directly back into the silo to prevent yield loss.
Continuous Operation Capability: By preventing media blinding, the system allows for continuous, high-volume pneumatic conveying without the need for manual intervention or forced shutdowns.
Moisture-Resistant Media: The specialized fabric resists the natural hygroscopic tendencies of flour, preventing the formation of sticky, unmanageable dough-like clogs on the sacks.
Optimized Air-to-Cloth Ratio: Carefully calculated filter areas ensure that the upward velocity of the air never overpowers the cleaning mechanism's ability to shed accumulated dust.
Facility layouts are rarely uniform, and spatial constraints often dictate equipment selection. Our dual-configuration approach ensures that whether you are retrofitting an older plant or designing a modernized processing facility, integration is seamless and spatially optimized.
Horizontal Configurations (LYDH Series): Specifically tailored for facilities with severely restricted overhead clearance, delivering maximum filtration area within a low-profile footprint.
Vertical Configurations (LYDV Series): The ideal solution for standard silos, utilizing a compact vertical stance to minimize the footprint on the bin deck while maximizing gravity-assisted dust release.
Universal Flange Mounting: Designed with standardized connection points that allow for rapid, secure bolting onto diverse flour silos and conveying transitions.
Modular Scalability: The standardized dimensions allow facility managers to easily install multiple units in parallel for exceptionally large storage vessels or high-volume transfer stations.
In the grain and flour processing sector, equipment hygiene directly impacts end-product safety. Every surface, weld, and seal on this dust filter has been scrutinized to eliminate contamination risks and uphold the highest standards of food safety.
Sanitary Interior Finish: The internal chambers feature remarkably smooth surfaces with zero dead angles, completely eliminating crevices where stale flour or bacteria could harbor.
Premium Componentry: All powder-contact surfaces are constructed from food-safe materials or coated with non-toxic, anti-corrosive finishes to prevent rust flaking into the product stream.
Hermetic Sealing Technology: High-grade, food-safe gaskets seal every access door and flange, ensuring a completely airtight environment that locks out ambient humidity and pests.
Odorless Operation: The materials used in construction and the filter media itself are completely inert, guaranteeing that no metallic or chemical odors are imparted to your stored flour.
The true cost of any equipment lies in its long-term operational expenses and labor requirements. We have meticulously redesigned the maintenance touchpoints of this filter to ensure that servicing is rapid, intuitive, and minimizes costly production downtime.
Tool-Free Sack Replacement: Maintenance personnel can swiftly unlatch and replace the 150x1200mm filter sacks by hand, reducing a previously hours-long task to mere minutes.
Ergonomic Access Doors: Oversized, strategically placed inspection hatches provide technicians with a clear, unobstructed view of the internal components without requiring full disassembly.
Extended Component Lifespan: The robust anti-clogging mechanisms drastically reduce the physical wear and tear on the filter bags, exponentially extending the intervals between replacements.
Reduced Labor Allocation: By automating the cleaning process and simplifying physical inspections, facility managers can reallocate maintenance staff to more critical operational tasks.
Over-specifying equipment wastes electricity, while undersized units fail to contain dust. Our comprehensive range of models empowers procurement teams to precisely match the filter's aerodynamic capacity to their specific pneumatic conveying volumes, ensuring peak energy efficiency.
Precision Volume Calibration: With capacities ranging from a gentle 162.8 m3/h to a robust 813.9 m3/h, you can select the exact draft needed for your specific silo displacement rate.
Elimination of Energy Waste: By avoiding the inefficiency of oversized equipment drawing excessive power, facilities drastically reduce the electrical draw required to maintain negative pressure.
Optimized Pressure Drop: The aerodynamic internal geometry minimizes resistance, allowing the system to process massive volumes of air without straining auxiliary exhaust fans.
Sustainable Operational Footprint: The combination of low power consumption and high-efficiency particulate capture aligns perfectly with modern corporate sustainability initiatives.
Sourcing critical infrastructure requires partnering with an entity that understands the nuanced demands of heavy industry. As a dedicated manufacturer and global supplier, we deliver more than just machinery; we provide engineered certainty for your production lines.
Direct-from-Manufacturer Value: By controlling the entire fabrication process, we eliminate intermediary markups, delivering premium-grade filtration technology at a highly competitive price point.
Stringent Quality Assurance: Every unit undergoes rigorous aerodynamic and structural testing before leaving our facility, ensuring flawless performance upon installation.
Deep Industry Expertise: With years of specialized experience in powder handling and flour storage solutions, our engineering team anticipates and solves complex integration challenges.
Rapid Global Fulfillment: Our streamlined production and logistics networks ensure that your critical auxiliary equipment arrives exactly when your project timeline demands it.
Comprehensive Technical Support: From initial volumetric calculations to post-installation troubleshooting, our dedicated specialists provide unwavering support throughout the equipment's lifecycle.
Navigating the technical specifications of industrial filtration requires precise information. Below, our engineering team addresses the most complex inquiries regarding the integration and performance of our Bin Top Dust Filters.
How do I determine whether my facility requires a horizontal or vertical configuration?
The choice depends entirely on your architectural constraints. The Horizontal (LYDH) series is engineered for facilities with low ceiling clearances above the silo deck, whereas the Vertical (LYDV) series is optimal for standard installations where vertical space is abundant but roof footprint is limited.
What is the expected lifespan of the 150x1200mm filter sacks under continuous flour milling conditions?
Due to our advanced anti-clogging mechanisms and moisture-resistant media, the filter sacks typically maintain optimal porosity for extended periods under standard continuous operation, significantly outperforming conventional alternatives.
Can this filter handle the high-velocity air displacement of pneumatic truck unloading?
Absolutely. By selecting our higher-capacity models, such as the LYDH-6 with an air volume capacity of up to 813.9 m3/h, the system effortlessly manages the rapid air displacement generated during intensive pneumatic bulk transfers.
Does the equipment require a dedicated compressed air line for the cleaning mechanism?
The system is designed to integrate seamlessly with standard industrial infrastructure. Depending on the specific cleaning mechanism selected for your material, it utilizes standard plant air to execute the automated dust cake release cycles efficiently.
Are the internal surfaces compliant with international food safety regulations?
Yes. Every component that comes into contact with the powder is treated or constructed to prevent oxidation and flaking. The smooth, dead-angle-free interior ensures that no material stagnates, completely satisfying rigorous food-grade hygiene standards.
