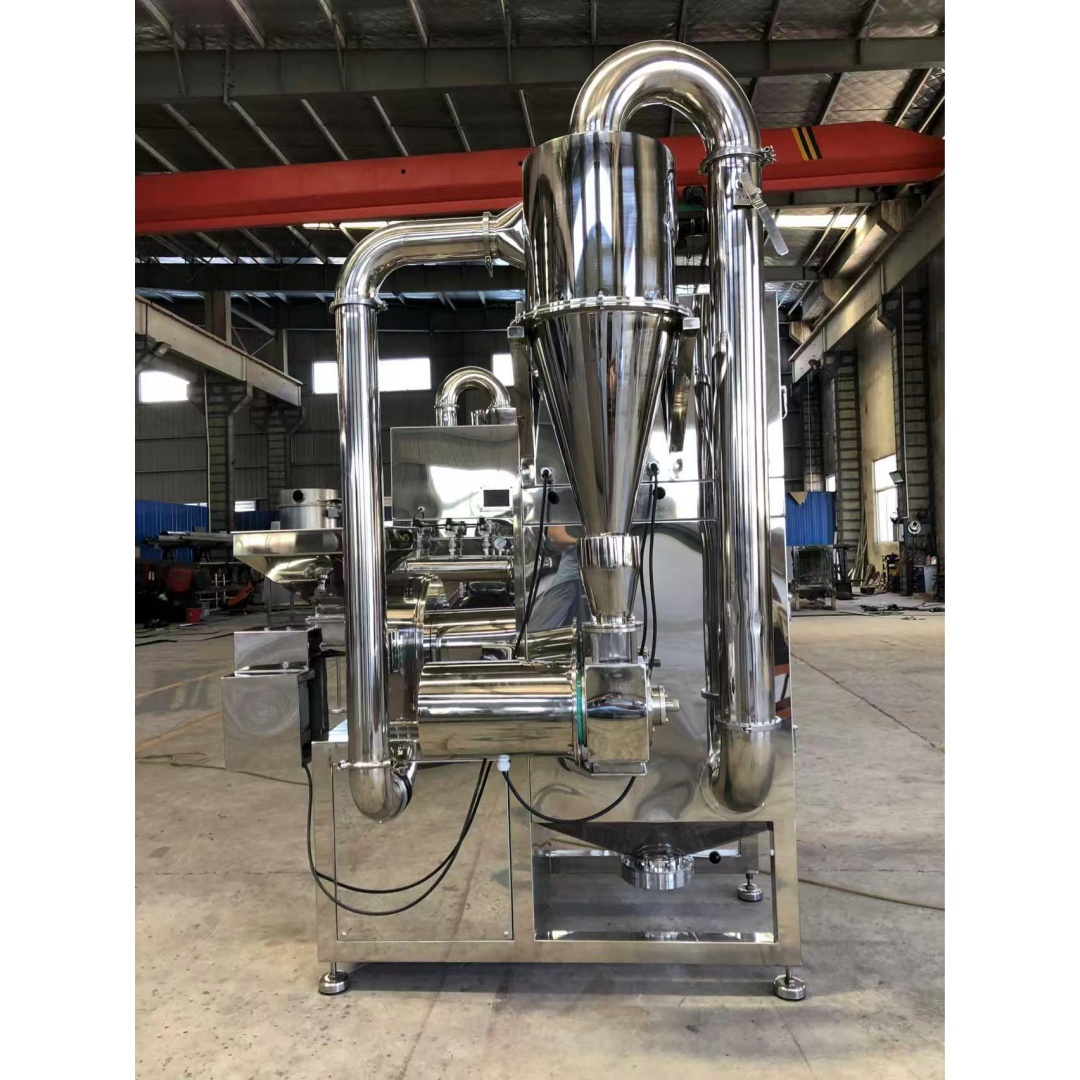

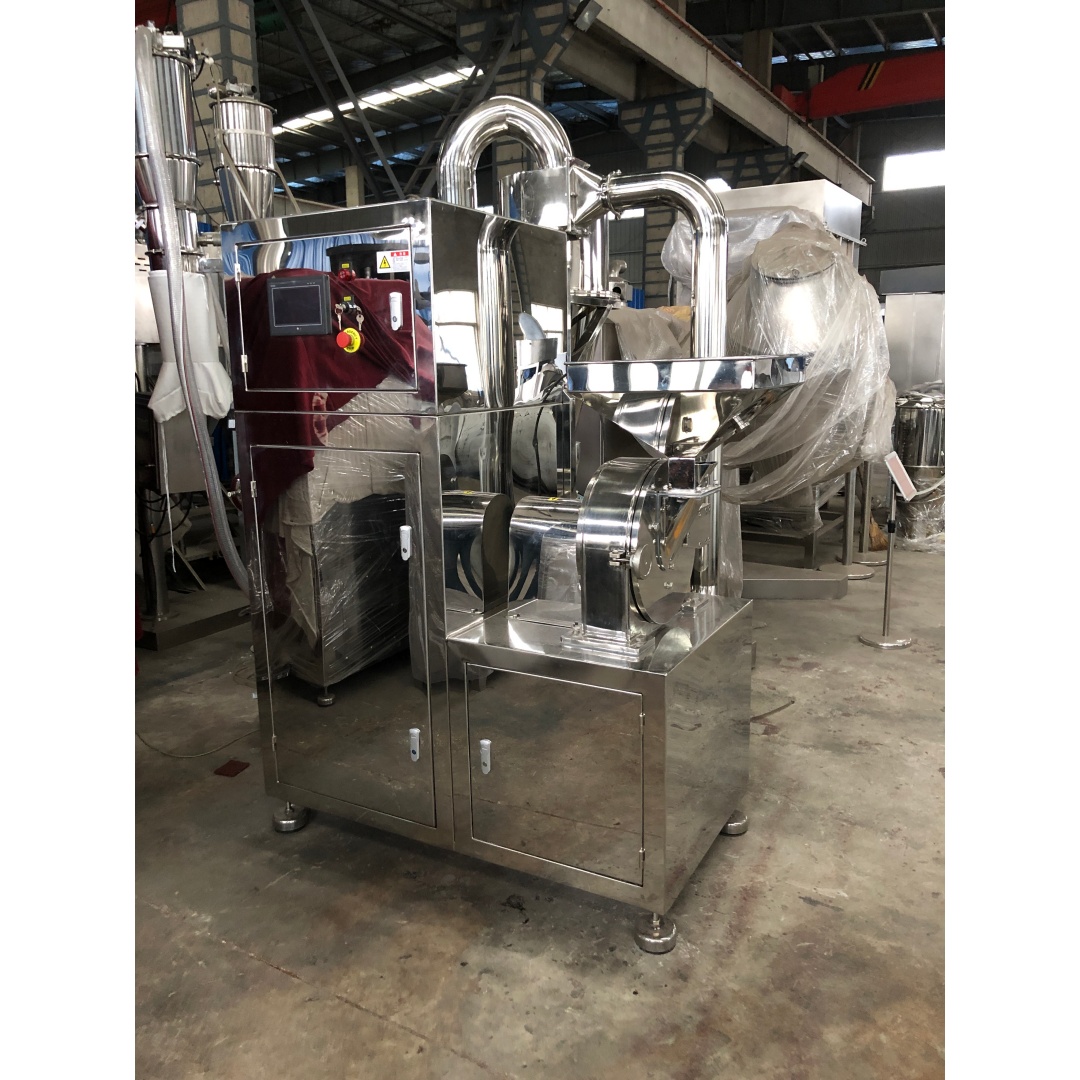

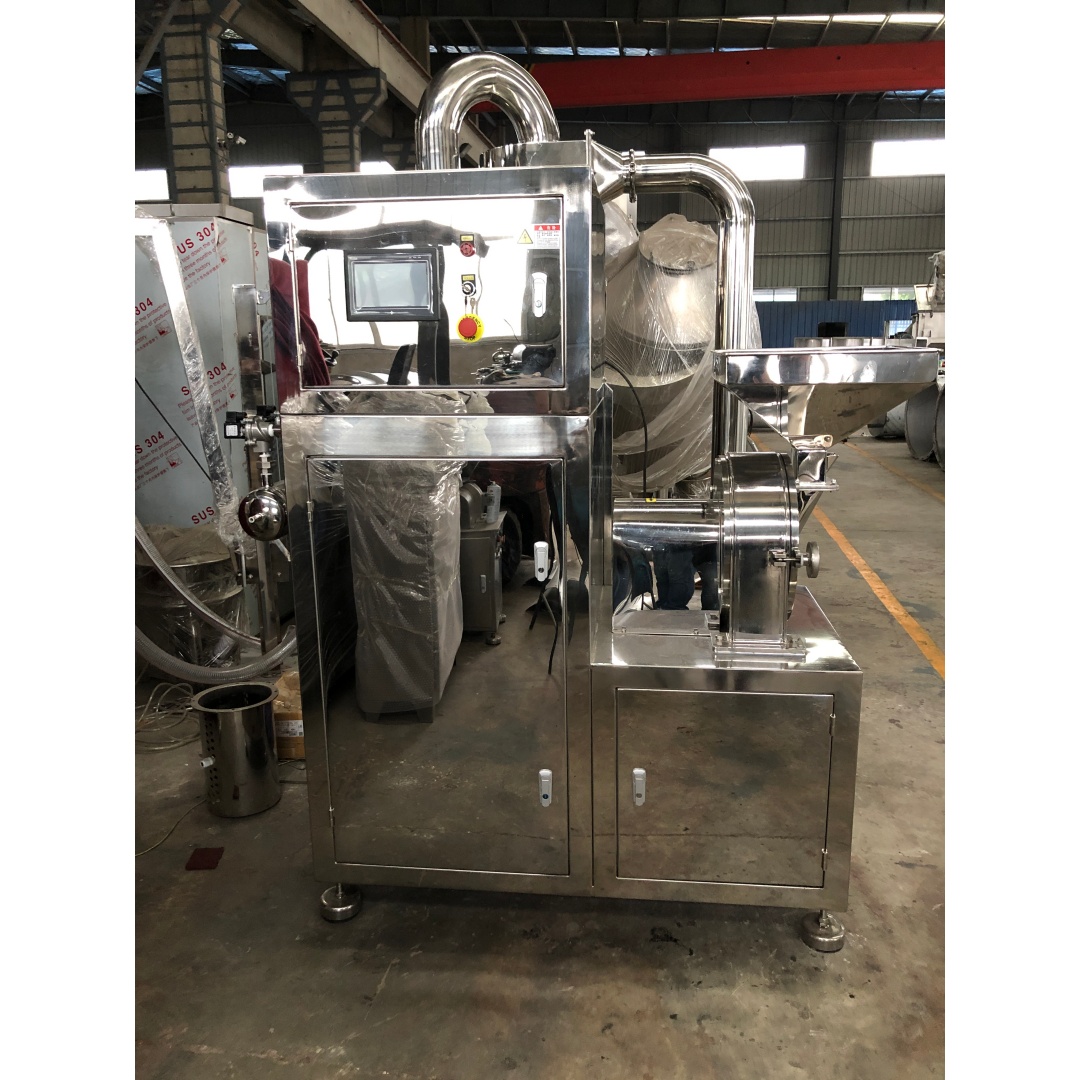

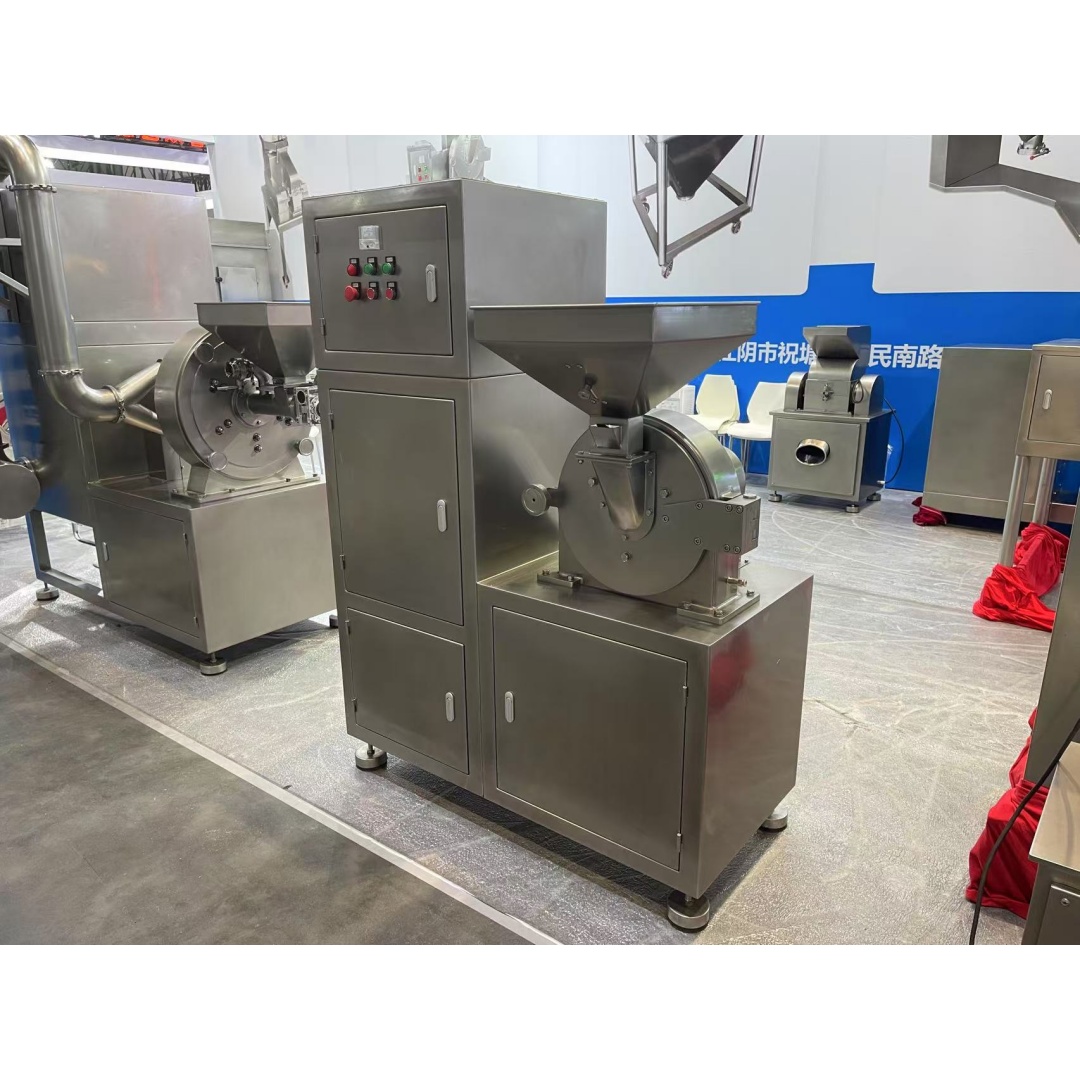

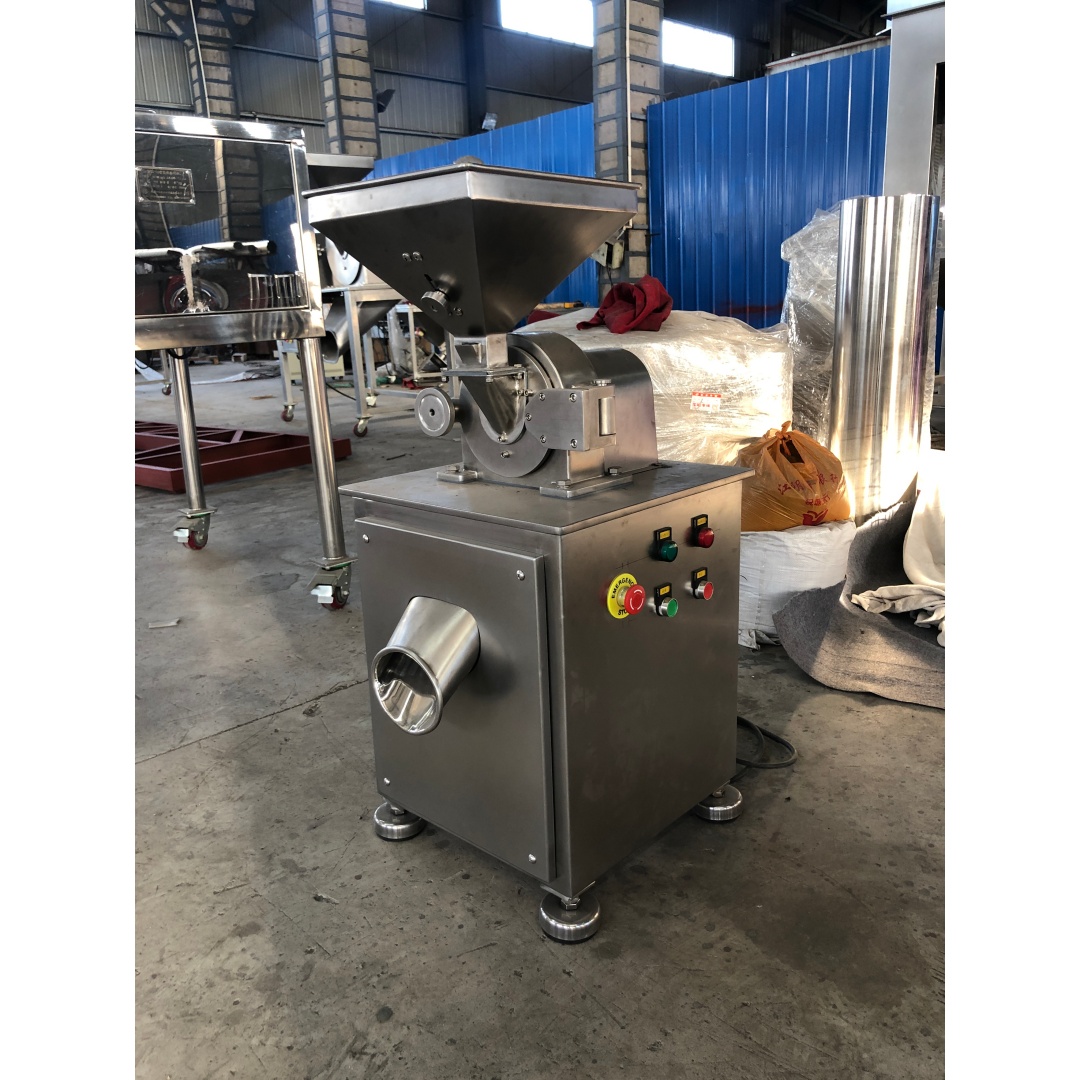

Grinding Machine

Product Description

Step into a new era of material processing with our state-of-the-art grinding machine, meticulously engineered to redefine operational efficiency. When you run your hands along the robust stainless steel exterior, you immediately sense the premium craftsmanship and industrial-grade durability built into every square inch of this equipment. The interior chamber is polished to an immaculate, mirror-like finish, eliminating blind spots and ensuring that no residual material clings to the walls. This thoughtful design not only prevents cross-contamination but also makes the cleaning process remarkably swift and effortless, saving your maintenance team countless hours of labor while maintaining absolute purity for your sensitive ingredients.

During operation, the machine hums with a steady, powerful resonance, a true testament to the precision-engineered relative motion between the rotoring tooth disc and the fixed tooth disk. This dynamic mechanical interaction shears and crushes materials with devastating efficiency, yet maintains a controlled thermal footprint to preserve the structural integrity, natural aroma, and essential properties of your raw materials. Whether you are processing aromatic spices that require strict flavor retention, crystalline sugars, or complex chemical compounds, the resulting powder emerges with a flawless, uniform texture. By integrating this advanced milling solution into your production line, you significantly elevate the quality of your final output while simultaneously driving down opera

Technical Parameters

Product Uses

1. Food plant: Grinding grain, spice, sugar for cookies, cakes production etc.

2. Traditional Chinese Medicine Factory: Grind various Chinese medicinal herbs into powder

3. Laboratory: Small sample grinding and material refinement.

Key Features & Highlights

Our grinding machine is engineered with a deep understanding of modern industrial demands. We focus on delivering tangible improvements to your daily operations, ensuring that every feature translates directly into enhanced productivity, safety, and superior product quality.

• Flawless Consistency: Achieve an exact, uniform particle size ranging from 60 to 120 mesh, ensuring your final product meets the strictest quality control parameters without the need for secondary processing or sifting.

• Optimized Material Flow: The meticulously polished inner chamber guarantees a frictionless transit for your materials, dramatically reducing the risk of clogging and maximizing your hourly throughput.

• Intelligent Thermal Management: The rapid, precise shearing action of the tooth discs minimizes heat generation during the milling process, safeguarding heat-sensitive ingredients from degradation and preserving their natural color and scent.

• Ergonomic Operation: Designed with the operator in mind, the system features intuitive access points that make routine inspections, interior cleaning, and operational adjustments straightforward and entirely stress-free.

Material & Compliance

When processing consumables or sensitive compounds, equipment hygiene is absolutely non-negotiable. This grinding machine is constructed entirely from premium-grade stainless steel, providing an impenetrable barrier against corrosion and contamination to protect your brand's reputation.

• GMP Standard Alignment: Every weld, seam, and surface is engineered to match rigorous Good Manufacturing Practice (GMP) standards, giving you complete confidence and peace of mind during strict facility audits.

• Zero-Residue Design: The ultra-smooth, polished interior eliminates microscopic crevices where bacteria or previous batches could hide, ensuring absolute purity and safety for your current production run.

• Corrosion Resistance: The robust stainless steel framework withstands aggressive cleaning agents and high-moisture environments, ensuring a long, rust-free operational lifespan even under heavy daily use.

• Cross-Contamination Prevention: Rapid and thorough cleanability means your operators can switch between different materials—from pungent spices to neutral excipients—without any flavor, odor, or chemical carryover.

Environmental & Dust Control

Airborne particulates are a major challenge in milling operations, posing severe risks to both worker health and facility cleanliness. Our equipment is proactively designed to tackle dust generation directly at the source, transforming your workspace.

• Seamless Extraction Integration: The grinder is built to be easily combined with an external dust collecting system, capturing microscopic particles before they can escape into the ambient air of your facility.

• Enhanced Workplace Safety: By mitigating dust clouds, you significantly reduce inhalation risks for your operators, fostering a safer, healthier, and more compliant working environment that meets occupational health standards.

• Valuable Waste Reduction: Efficiently capturing airborne powder means valuable material is recovered rather than lost to the factory floor, directly improving your overall yield and operational profitability.

• Pristine Facility Maintenance: A cleaner operation dramatically reduces the time, labor, and resources spent on daily facility sanitation, allowing your team to focus their energy on core production tasks.

Grinding Technology & Output Quality

The heart of this machine lies in its advanced mechanical action. By utilizing the intense relative motion between a rotoring tooth disc and a fixed tooth disk, it delivers a masterclass in precision particle size reduction.

• Precision Shearing Action: The interlocking teeth create a high-velocity impact zone that shatters materials instantly, preventing the smearing, melting, or clumping often seen in inferior milling methods.

• Uniform Mesh Output: Consistently achieve a fine, predictable powder between 60 and 120 mesh, which is absolutely essential for products that require rapid dissolution, perfect blending, or smooth textures.

• Texture and Aroma Preservation: The swift processing speed minimizes the time material spends in the grinding chamber, locking in the volatile essential oils of spices and the structural integrity of delicate chemical compounds.

• Adaptive Processing: Highly capable of handling varying feeding material sizes—ranging from less than 6mm up to 15mm depending on the specific model—and transforming them into a standardized, homogenous final product.

Maintenance & Durability

We understand that equipment downtime is a direct hit to your bottom line. Therefore, this grinding machine is architected for maximum uptime, featuring an intuitive design that simplifies upkeep and significantly extends the machine's lifecycle.

• Tool-Free Accessibility: The grinding chamber can be opened swiftly, granting immediate, unhindered access to the internal discs for rapid inspection, thorough cleaning, or routine part replacement.

• Heavy-Duty Components: Built with industrial-grade motors ranging from 4kw to 15kw, ensuring relentless, continuous operation even under the most demanding and rigorous production schedules.

• Simplified Cleaning Protocols: The deliberate absence of complex internal geometries means your sanitation crew can achieve a complete and compliant washdown in a fraction of the time compared to traditional mills.

• Low Total Cost of Ownership: Equipped with highly durable tooth discs that strongly resist wear and tear, the frequency of replacing consumable parts is drastically reduced, optimizing your long-term maintenance budget.

Why Choose Us

Selecting the right equipment supplier is just as critical to your success as choosing the machine itself. We pride ourselves on delivering not just heavy-duty machinery, but comprehensive solutions that empower your production capabilities and drive your business forward.

• Uncompromising Quality Control: Every machine undergoes rigorous stress testing and precision calibration before leaving our facility, ensuring it performs flawlessly from the exact moment it is installed on your floor.

• Deep Industry Expertise: With years of dedicated experience engineering processing equipment, we deeply understand the nuanced challenges of your specific sector and build machines that solve real-world production bottlenecks.

• Dedicated Technical Support: Our relationship does not end at delivery. We provide robust, ongoing technical guidance to help you optimize your grinding parameters and maintain peak operational efficiency year after year.

• Reliable Global Supply: As a highly trusted manufacturer, we maintain a streamlined production and logistics network, guaranteeing that your equipment and any future spare parts arrive securely and on time, every time.

Frequently Asked Questions (FAQ)

To assist you in making an informed procurement decision, we have compiled detailed answers to the most common technical and operational inquiries regarding our advanced grinding equipment.

• What materials are best suited for this grinding machine?
  This equipment is exceptionally versatile. It excels at processing dry, brittle, and crystalline materials. Common and highly successful applications include grains, spices, sugar, salt, dried medicinal herbs, and various non-viscous chemical raw materials.

• How does the machine ensure compliance with strict hygiene standards?
  The entire material contact surface and structural body are fabricated from high-grade stainless steel. The interior is meticulously polished to a mirror-smooth finish, preventing material accumulation and allowing for thorough, rapid cleaning that aligns perfectly with GMP standards.

• Can the final grinding size be adjusted to meet my specific needs?
  Yes, the final powder fineness can be precisely controlled. By changing the internal screen meshes and adjusting the operational parameters, you can consistently achieve a grinding size ranging between 60 and 120 mesh, depending on the specific characteristics of your raw material.

• Is it difficult to clean the machine between different product batches?
  Not at all. The machine features a highly user-friendly design that allows for quick, unhindered access to the grinding chamber. The smooth stainless steel interior and easily removable components mean your team can perform a complete washdown rapidly, effectively preventing cross-contamination between batches.

• How does the dust collection system integrate with the grinder?
  The machine is proactively designed with a dedicated discharge port that can seamlessly connect to an external dust collection unit. This setup creates a negative pressure environment during milling, effectively capturing airborne dust, minimizing material waste, and keeping your facility spotless.

• What are the power requirements for the different models available?
  Power requirements scale intelligently with the capacity of the machine to ensure optimal energy efficiency. The FSM-20B requires a 4kw motor, the FSM-30B uses 5.5kw, the FSM-40B utilizes 7.5kw, and our largest capacity model, the FSM-60B, operates with a robust 15kw motor to handle massive loads.
