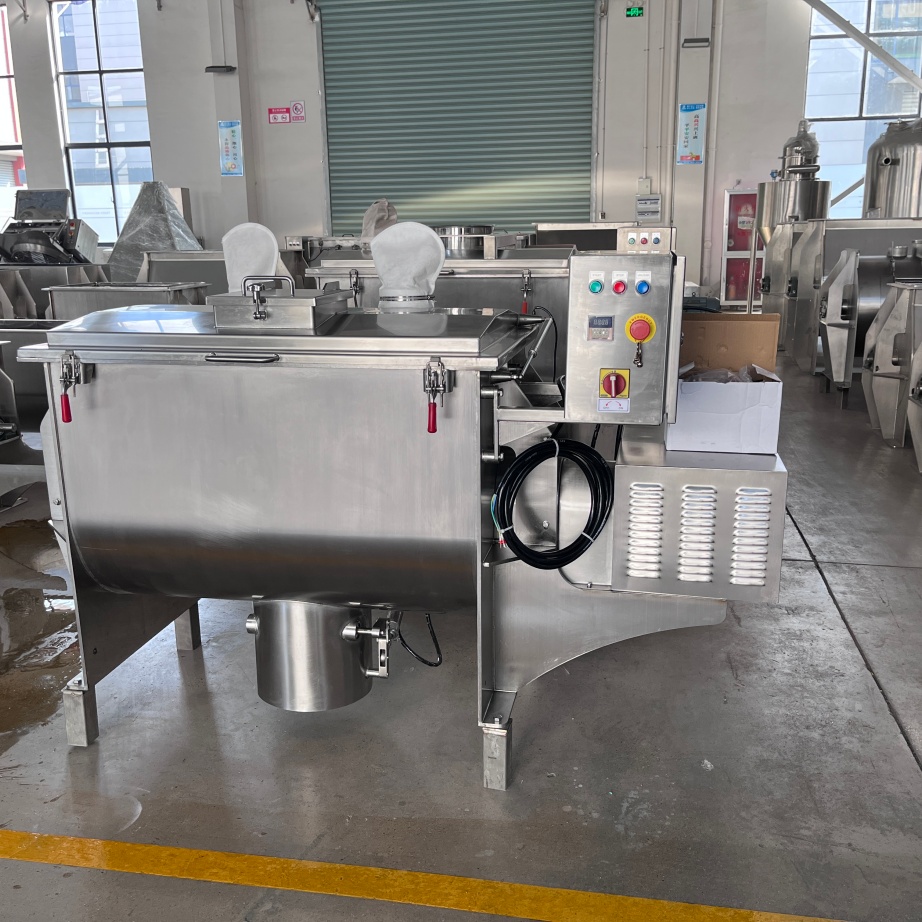

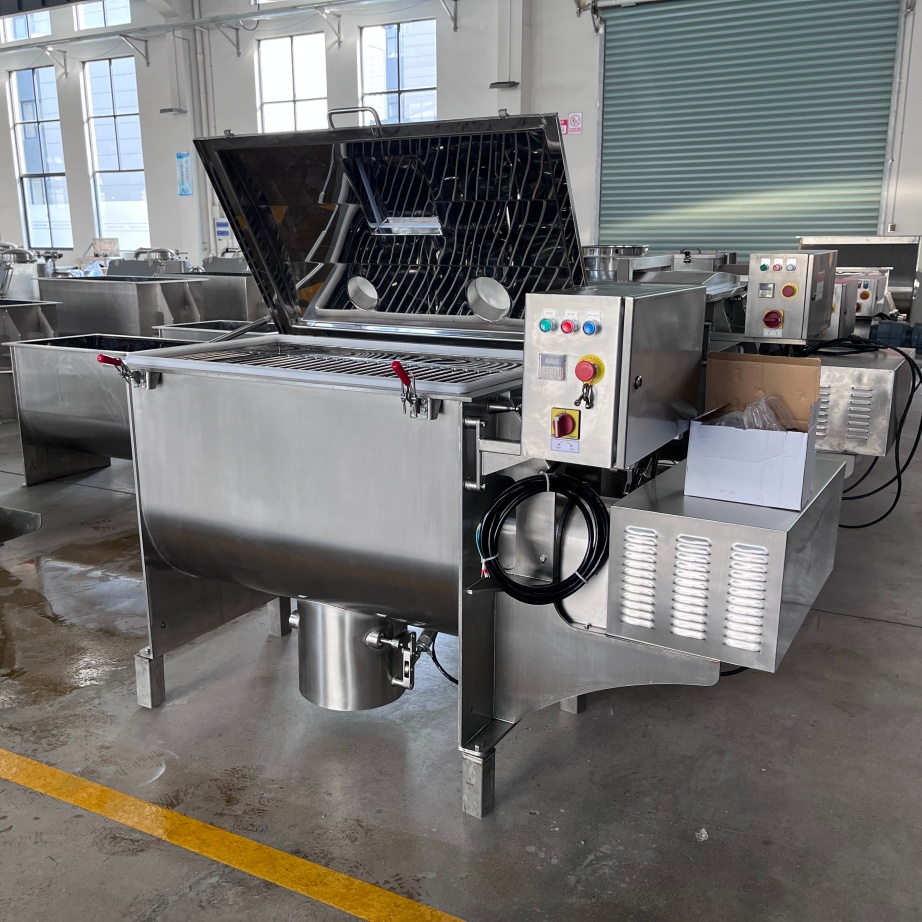

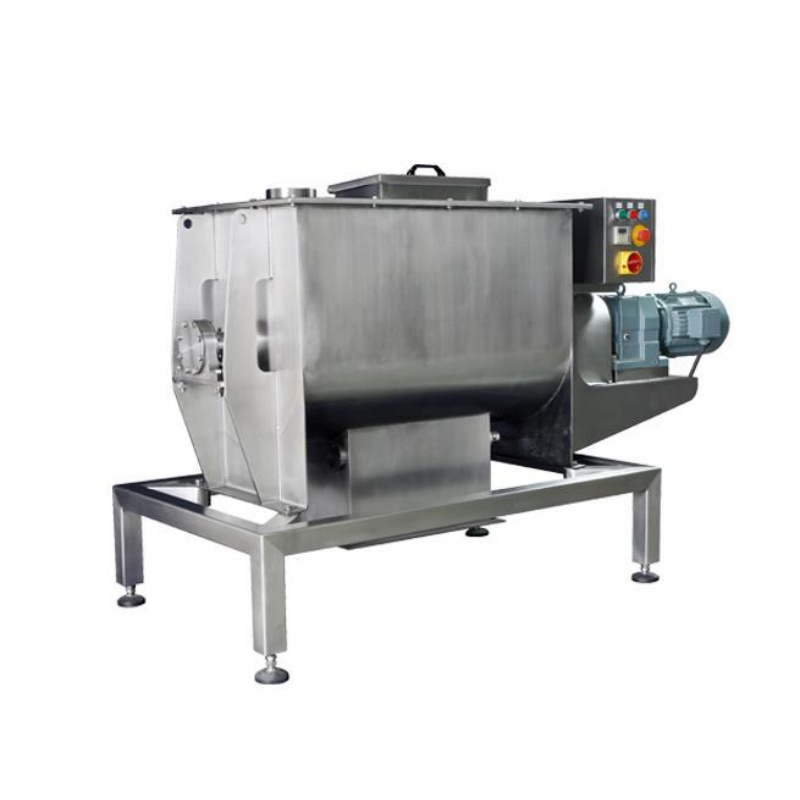

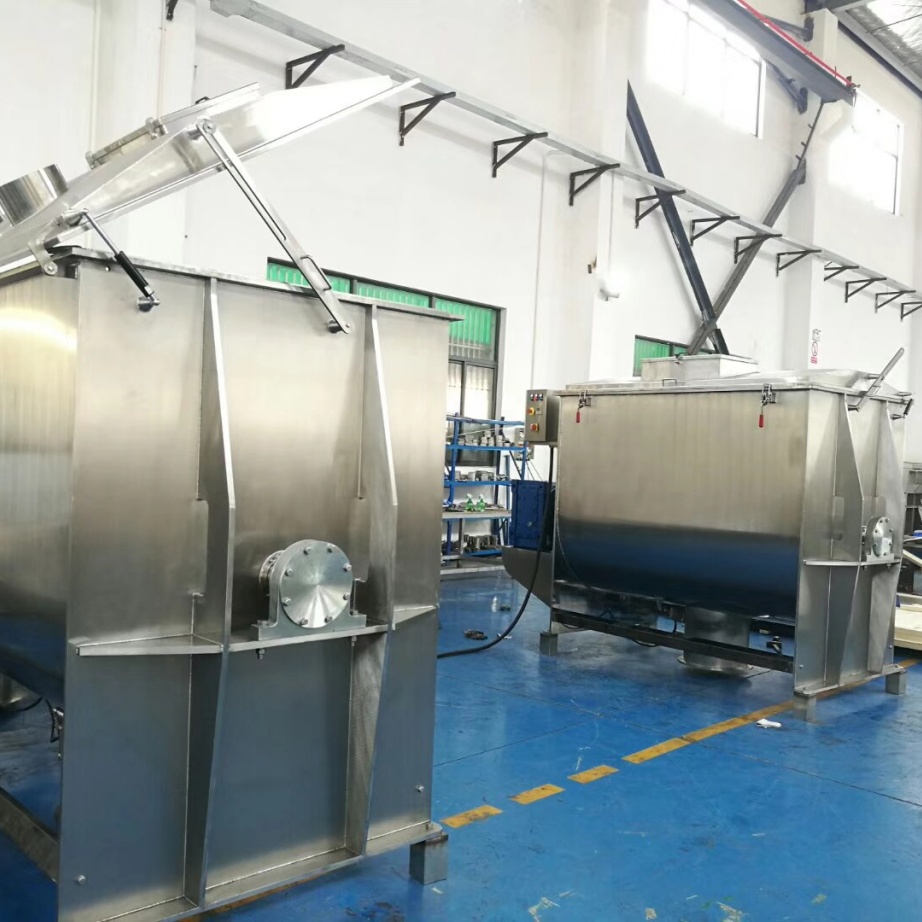

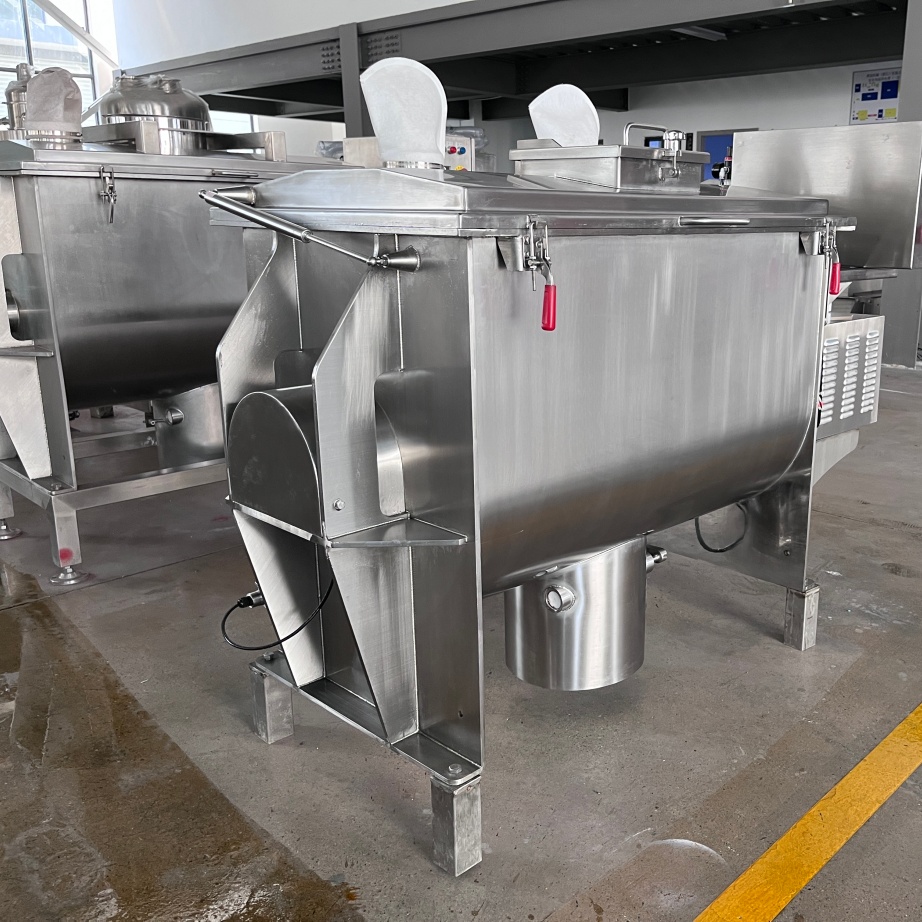

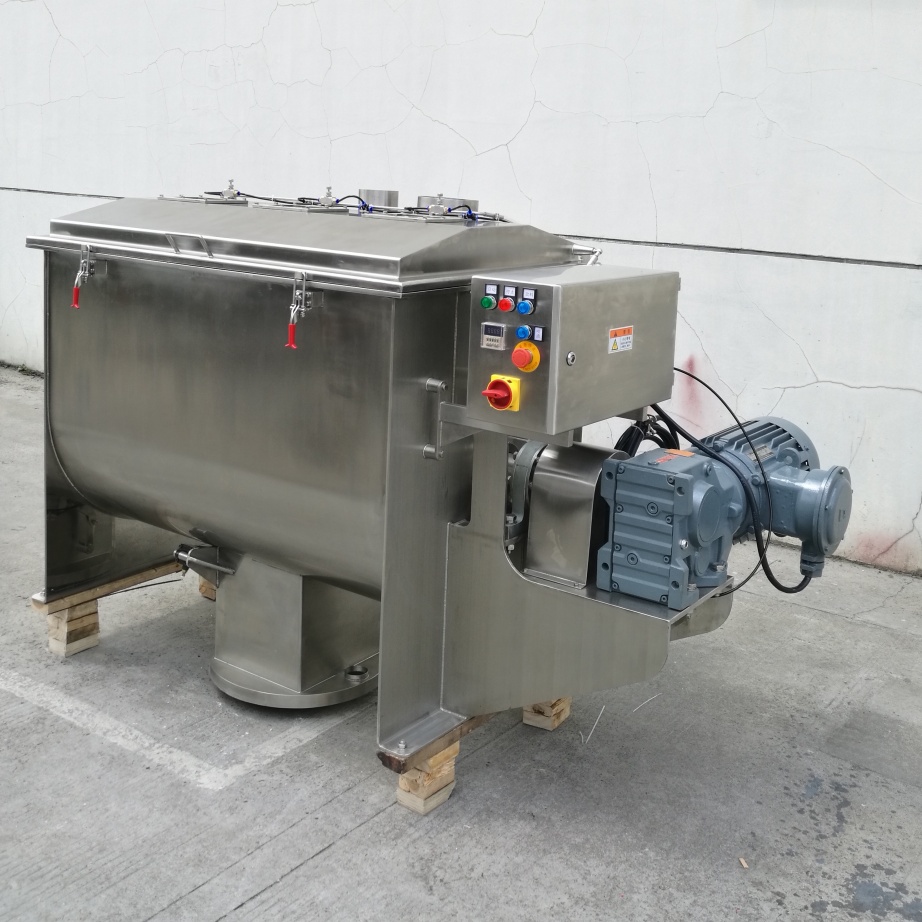

Step into a new era of processing excellence with our industrial-grade Ribbon Mixer. Engineered to transform raw ingredients into perfectly homogeneous blends, this equipment operates with a smooth, low-decibel hum that speaks to its precision manufacturing. The heavy-duty carbon or mirror-polished stainless steel exterior houses a sophisticated inner and outer spiral ribbon mechanism. As the central shaft rotates, the outer ribbon continuously moves materials from the ends toward the center, while the inner ribbon pushes them from the center toward the ends.
This dynamic, counter-flowing action creates an intense convective shear, ensuring that even the most stubborn powders, granules, or heavy pastes are folded into a uniform matrix within minutes. Whether you are dealing with delicate pharmaceutical excipients or dense construction mortars, the gentle yet highly effective sweeping motion preserves the physical integrity of your materials without causing unwanted degradation or heat buildup. By integrating this mixer into your production line, you drastically reduce batch cycle times while elevating the consistency of your final output, ultimately protecting your brand's reputation for quality.
Model | Effective Volume | Load Coefficient | Rotary Speed | Power | Weight | Dimension |
SLHY-200 | 200L | 0.6~0.8 | 53rpm | 4kw | 400kg | 1800x860x1100mm |
SLHY-300 | 300L | 0.6~0.8 | 53rpm | 5.5kw | 650kg | 1900x900x1200mm |
SLHY-500 | 500L | 0.6~0.8 | 45rpm | 7.5kw | 980kg | 2050x1050x1250mm |
SLHY-1000 | 1000L | 0.6~0.8 | 45rpm | 11kw | 1300kg | 2500x1200x1350mm |
SLHY-1500 | 1500L | 0.6~0.8 | 39rpm | 15kw | 1600kg | 2950x1350x1400mm |
SLHY-2000 | 2000L | 0.6~0.8 | 39rpm | 18.5kw | 2200kg | 3300x1500x1650mm |
1. Food industry: Suitable for mixing flour, spices, feed additives, sugar, salt, seasoning powder and other dry or wet food materials.
2. Pharmaceutical industry: Applied to uniform blending of medicinal powder, herbal extracts, capsules and tablet raw materials.
3. Chemical industry: Used for mixing chemical powder, plastic particles, fertilizer, pigment, filler and other chemical raw materials.
4. Construction & daily chemicals: Ideal for mixing mortar, coating material, detergent powder, cosmetic raw materials and similar products.
5. Feed & biomass industry: Applied to the mixing of feed formula, grain powder, crop straw powder and biomass materials.
Elevate your processing capabilities with features designed specifically to resolve common production bottlenecks. Our mixing equipment is built to deliver immediate operational improvements and tangible returns on your facility's investment.
Exceptional Homogeneity: The dual-ribbon architecture guarantees rapid, even blending, eliminating dead zones and ensuring every batch meets strict quality control standards.
Cross-Industry Versatility: Seamlessly adapts to varying material properties, perfectly handling dry food ingredients, chemical compounds, pharmaceutical powders, and biomass materials.
Unwavering Stability: Constructed with a reinforced structural frame, the machine delivers a smooth, vibration-free operation that significantly extends the equipment's service life.
Optimized Energy Consumption: Engineered for maximum mechanical efficiency, the system achieves shorter mixing cycles while drawing less power, lowering your daily operational utility costs.
Streamlined Workflow: Designed with intuitive feeding and discharging points, allowing operators to transition between batches quickly, safely, and with minimal physical strain.
When processing sensitive materials for human consumption or medical applications, equipment hygiene is non-negotiable. We engineer our mixing systems with uncompromising material standards to ensure full regulatory compliance and protect your product integrity.
Premium Stainless Steel Construction: Contact parts are forged from high-grade SUS304 or SUS316L stainless steel, offering exceptional resistance to corrosive chemicals and acidic food ingredients.
Flawless Sanitary Finish: Every internal weld undergoes meticulous full-welding and mirror-polishing. This eliminates microscopic crevices and dead angles where bacteria or cross-contaminants could harbor.
Global Regulatory Alignment: The structural design directly supports strict industry certifications, easily meeting the stringent hygiene requirements of GMP, FDA, and CE standards.
Long-Term Durability: The anti-corrosion and anti-rust properties of the selected alloys guarantee that the machine maintains its pristine, easy-to-clean surface even after years of rigorous daily washdowns.
Achieving a perfect blend in the shortest possible time directly impacts your factory's output capacity. Our advanced agitation technology is calibrated to maximize convective forces without degrading your valuable raw materials.
Dual-Ribbon Dynamics: The sophisticated inner and outer spiral ribbon mechanism creates a continuous, multi-directional flow. The outer ribbon pulls material inward, while the inner ribbon pushes it outward, resulting in intense convective shear.
Industry-Leading CV Levels: This precise mechanical choreography ensures an exceptionally low Coefficient of Variation (CV), meaning every scoop of your final product contains the exact intended ratio of ingredients.
Rapid Batch Cycles: By eliminating stagnant zones within the trough, the blending time is drastically reduced, allowing you to process more batches per shift and maximize your facility's throughput.
Gentle Material Handling: Despite the rapid mixing speed, the sweeping motion is remarkably smooth. It preserves the original physical state of fragile granules and delicate flakes, preventing unwanted friction heat or particle crushing.
Airborne dust and material retention are critical pain points in powder processing facilities. We have completely reimagined the sealing and discharge architecture to maintain a pristine floor environment and maximize product yield.
Zero-Leakage Shaft Seals: Choose from high-performance packing seals, advanced pneumatic seals, or robust mechanical seals. These configurations create an impenetrable barrier around the main shaft, entirely preventing fine powder escape.
Optimized Discharge Flow: The bottom discharge port is engineered for rapid, unobstructed evacuation of the vessel, minimizing residual material and reducing the time required between batch changeovers.
Versatile Valve Options: Depending on your automation level, the system can be equipped with pneumatic or manual flap valves, as well as precision butterfly valves, giving operators total control over the discharge rate.
Simplified Sanitation: The seamless transition from the mixing trough to the discharge chute ensures no material gets trapped, making wet washing or dry vacuuming incredibly straightforward and highly effective.
Selecting the right equipment supplier is about more than just purchasing machinery; it is about securing a reliable partner for your long-term operational success. We bring decades of specialized engineering expertise to the table, focusing entirely on the nuances of industrial blending and material handling.
Proven Engineering Pedigree: Our design teams have successfully deployed thousands of mixing solutions across the food, pharmaceutical, and chemical sectors, giving us deep insights into industry-specific challenges.
Stringent Quality Assurance: Every machine undergoes rigorous factory acceptance testing (FAT), including loaded continuous-run trials and acoustic profiling, before it ever leaves our manufacturing facility.
Direct-from-Source Value: By managing the entire fabrication process in-house, we eliminate unnecessary markups, delivering premium, heavy-duty equipment at a highly competitive investment level.
Responsive Technical Ecosystem: From initial capacity calculations to post-installation troubleshooting, our dedicated support engineers are always available to help you optimize your processing parameters.
The ideal volume depends on your target batch weight and the bulk density of your raw materials. Since our load coefficient ranges from 0.6 to 0.8, a 1000L model (SLHY-1000) effectively processes 600L to 800L of material per batch. Our engineers can assist in calculating the exact model needed based on your hourly throughput requirements.
Yes. The robust inner and outer spiral ribbon structure, combined with high-torque motor configurations (up to 18.5kw for the 2000L model), is specifically designed to power through dense, sticky pastes just as effectively as free-flowing granules and dry powders.
Routine maintenance is highly straightforward. For packing seals, operators simply need to inspect the tension periodically and adjust the gland nuts as necessary. For pneumatic or mechanical seals, regular checks of the air pressure and lubrication lines will ensure zero powder leakage over an extended operational lifespan.
While it is mechanically possible to retrofit, we highly recommend specifying thermal jackets during the initial design and order phase. Factory-integrated jackets ensure optimal heat transfer efficiency, superior insulation, and seamless integration with the structural vessel walls.
The machine is equipped with highly sensitive limit switches connected directly to the main control panel. If the primary access lid or safety grid is lifted by even a fraction of an inch while the motor is engaged, the system instantly triggers an emergency brake, halting the ribbons immediately to prevent any accidental injuries.
