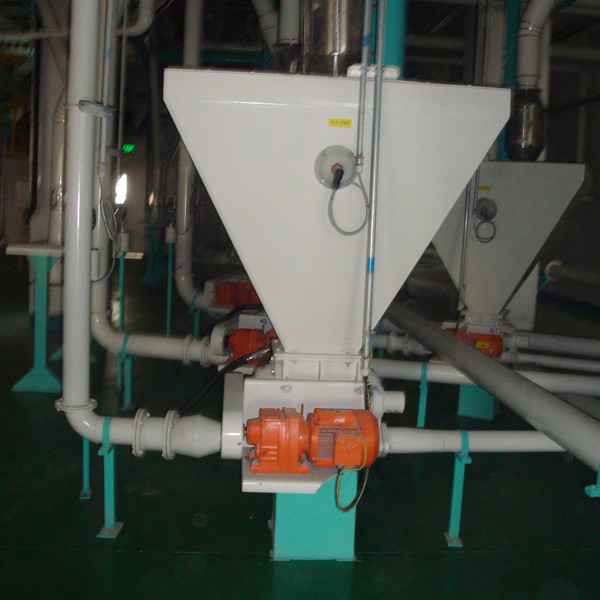

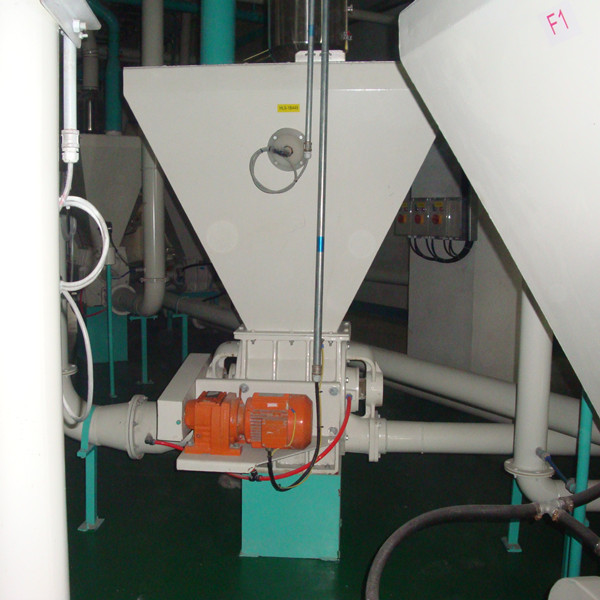

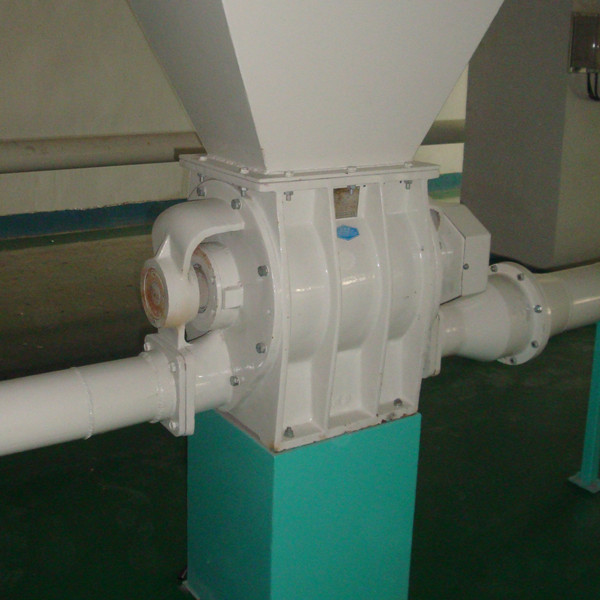

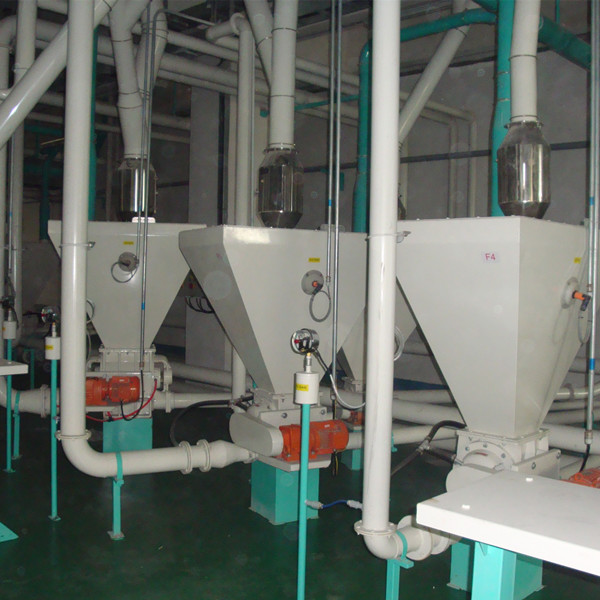

Blow Through Airlock

Product Description

The Blow Through Airlock stands as the beating heart of modern pneumatic conveying systems, meticulously crafted to transform how industrial facilities manage bulk material transfer. When you run your hand along the exterior housing, the cool, exceptionally smooth finish of the heavy-duty 304 stainless steel or the rugged texture of the robust cast iron speaks volumes about its precision engineering and industrial-grade craftsmanship. The moment the system powers on, the quiet, steady hum—registering at a remarkably low noise level of under 60 decibels—assures operators of its perfectly balanced, frictionless rotor movement. Instead of struggling with material buildup or erratic pipeline pressure, facility managers experience a continuous, fluid discharge of powders and granules. The specialized blow-through design actively sweeps the U-shaped rotor pockets clean with a direct, high-velocity stream of air, completely eliminating the frustrating blockages traditionally associated with sticky, cohesive, or moisture-rich materials. By maintaining a strict air leakage rate of less than 0.5%, this airlock safeguards the integrity of your entire conveying line. It prevents hazardous dust clouds from forming, minimizes expensive product waste, and ensures that every ounce of material reaches its downstream destination with uncompromising consistency. It is not merely a valve; it is a definitive, high-performance solution for maintaining pristine facility environments, protecting worker health, and ensuring uninterrupted, highly profitable production flows.

Technical Parameters

Product Uses

1. Food Industry: Used in the conveying system of powdery (flour, milk powder, starch) and granular (sugar, cereal, snack particles) food materials, ensuring air-tight and hygienic material discharge, fully complying with food safety standards.

2. Pharmaceutical Industry: Applied to the transfer of pharmaceutical raw material powder, Chinese medicine particles and auxiliary materials, effectively avoiding air pollution and cross-contamination, meeting GMP hygiene requirements.

3. Chemical Industry: Suitable for the conveying of non-corrosive/weakly corrosive fine chemical powders (pigment, catalyst, chemical additives) and small block materials, preventing air leakage and material loss during conveying.

4. Grain & Feed Industry: Used in grain storage and processing systems, responsible for the uniform discharge of grain, corn, soybean and feed particles, matching silos, conveyors and other equipment to ensure stable production.

5. Automated Conveying Systems: Seamlessly integrated into various automated production lines, connecting upstream storage equipment and downstream processing/packaging equipment, realizing continuous and efficient material transfer.

Key Features & Highlights

Elevate your material handling infrastructure with a component designed to bridge the gap between heavy-duty performance and refined operational control. The architecture of this blow-through rotary valve focuses on eradicating common processing bottlenecks while significantly extending the operational lifespan of your entire conveying system.

• Precision Machined Clearances: The exceptionally tight tolerances between the rotor and housing prevent compressed air from escaping, stabilizing your line pressure and reducing overall energy waste.

• Whisper-Quiet Operation: Engineered with securely sealed, high-grade bearings, the unit operates at a noise level below 60dB, contributing to a safer, more comfortable acoustic environment on the factory floor.

• Heavy-Duty Load Bearing: Capable of supporting up to 500kg of overhead weight, allowing for direct installation beneath massive storage silos without the risk of structural deformation or binding.

• Broad Particle Compatibility: Effortlessly handles particles ranging from ultra-fine 0.1mm powders to 5mm granules, adapting instantly to your changing raw material requirements without mechanical adjustments.

• Extended Longevity: Built to endure continuous, rigorous production cycles, delivering a dependable service life of 8 to 10 years with minimal intervention or spare parts replacement.

Sealing & Air-Tightness

Air-tightness dictates the success or failure of any pneumatic conveying system, acting as the invisible barrier that keeps your process stable. This blow-through airlock is engineered with an uncompromising focus on atmospheric isolation, utilizing a precision-machined rotor and an advanced sealing architecture. By achieving an astonishingly low air leakage rate of ≤ 0.5%, it acts as an impenetrable shield against pressure drops and reverse airflow, ensuring your blowers operate at peak efficiency.

• Stable Conveying Pressure: Locks in the required kinetic energy within the pipeline, ensuring materials are transported at consistent velocities without stalling or settling in the pipes.

• Dust-Free Environment: Prevents fine particulate matter from escaping into the facility atmosphere, protecting worker respiratory health and drastically reducing daily housekeeping overhead.

• Energy Optimization: By stopping valuable compressed air from bleeding out of the system, it significantly reduces the electrical workload on your blowers and compressors, lowering utility bills.

• Blowback Prevention: Effectively stops reverse gas flow from disrupting the upstream feeding sequence, maintaining a steady, predictable, and highly accurate material intake.

Material & Sanitary Compliance

Processing environments demand materials that can withstand aggressive, abrasive conditions while maintaining absolute purity and cleanliness. We offer this airlock in two premium configurations: high-strength cast iron for rugged, heavy-duty applications, and 304 stainless steel for environments where hygiene is strictly non-negotiable. The smooth, polished internal surfaces leave no microscopic crevices for bacteria, moisture, or old residue to hide, ensuring every batch remains untainted.

• Pharmaceutical Grade Safety: Fully compliant with strict GMP hygiene requirements, ensuring the safe, uncontaminated handling of sensitive active pharmaceutical ingredients (APIs) and medicinal powders.

• Food-Safe Processing: Ideal for conveying flour, milk powder, starches, and sugar, preventing any risk of cross-contamination and meeting rigorous international food safety standards.

• Corrosion Resistance: The 304 stainless steel variant effortlessly handles weakly corrosive fine chemicals, catalysts, and chemical additives without degrading, rusting, or pitting over time.

• Odor and Taste Neutrality: The chemically inert nature of the contact surfaces ensures that the delicate flavor and aromatic profiles of food products remain completely unaltered during transfer.

Why Choose Us

Sourcing critical processing equipment requires partnering with a manufacturer that truly understands the intricate, high-stakes demands of large-scale production. We do not just supply hardware; we engineer comprehensive mechanical solutions that protect your operational efficiency and product integrity. Our manufacturing process combines rigorous metallurgical testing with cutting-edge CNC machining to produce rotary valves that consistently set the industry benchmark for precision and reliability.

• Uncompromising Quality Control: Every single airlock undergoes rigorous pressure testing, air leakage verification, and dimensional inspection before it ever leaves our facility, guaranteeing out-of-the-box performance.

• Deep Application Expertise: With years of dedicated experience across the food, pharmaceutical, chemical, and grain sectors, we provide expert guidance to ensure you select the perfect model for your material.

• Rapid Global Fulfillment: Our streamlined production capabilities and robust inventory management mean we can meet demanding procurement schedules without ever sacrificing build quality or attention to detail.

• Dedicated Technical Support: From initial sizing calculations and CAD integration to post-installation troubleshooting, our engineering team stands ready to ensure your conveying system operates at absolute peak potential.

Frequently Asked Questions (FAQ)

Navigating the technical specifications of pneumatic conveying components can be complex. Below, we address the most critical questions facility engineers and procurement specialists ask when evaluating our blow-through rotary valves for their production lines.

• Q1: How does the blow-through design differ from a standard drop-through airlock?
  A standard drop-through valve relies entirely on gravity to empty the rotor pockets, which frequently causes sticky or cohesive materials to cling to the blades. In our blow-through design, the pneumatic conveying line is piped directly through the bottom of the valve housing. The high-velocity air physically sweeps the U-shaped pockets clean, ensuring 100% material evacuation and preventing blockages.

• Q2: Can this airlock reliably handle highly abrasive materials without premature wear?
  Yes. For abrasive applications such as certain grains or chemical additives, we highly recommend our high-strength cast iron models. Additionally, the outboard sealed bearing design is specifically engineered to keep abrasive dust completely isolated from critical moving parts, significantly reducing wear and extending the operational lifespan even under harsh conditions.

• Q3: What maintenance procedures are required to keep the air leakage rate below 0.5%?
  Maintaining the exceptional ≤ 0.5% air leakage rate involves routine visual inspections of the rotor tip clearances and the internal housing surface. Thanks to the quick-release detachable structure, operators can easily open the unit to clean out any hardened residue and verify that the precision-machined tolerances remain intact. Regular lubrication of the external bearings is also advised to ensure smooth rotation.

• Q4: Is the 304 stainless steel model suitable for handling active pharmaceutical ingredients (APIs)?
  Absolutely. The 304 stainless steel configuration is meticulously manufactured to meet rigorous GMP hygiene requirements. The internal surfaces are smoothly finished and polished to eliminate microscopic crevices where powders could accumulate, preventing cross-contamination and making it fully suitable for sensitive pharmaceutical and food-grade applications.

• Q5: How do I accurately determine the correct model size for my specific conveying system?
  Sizing depends heavily on your required throughput, the material's bulk density, and the specific flow characteristics of the powder or granule. Our range covers capacities from 1.8 t/h to 100 t/h. We recommend calculating your maximum required volumetric flow rate and matching it to our volume range (0.0025 m³ to 0.145 m³), while factoring in a 70-80% pocket fill efficiency for optimal, stall-free performance.
