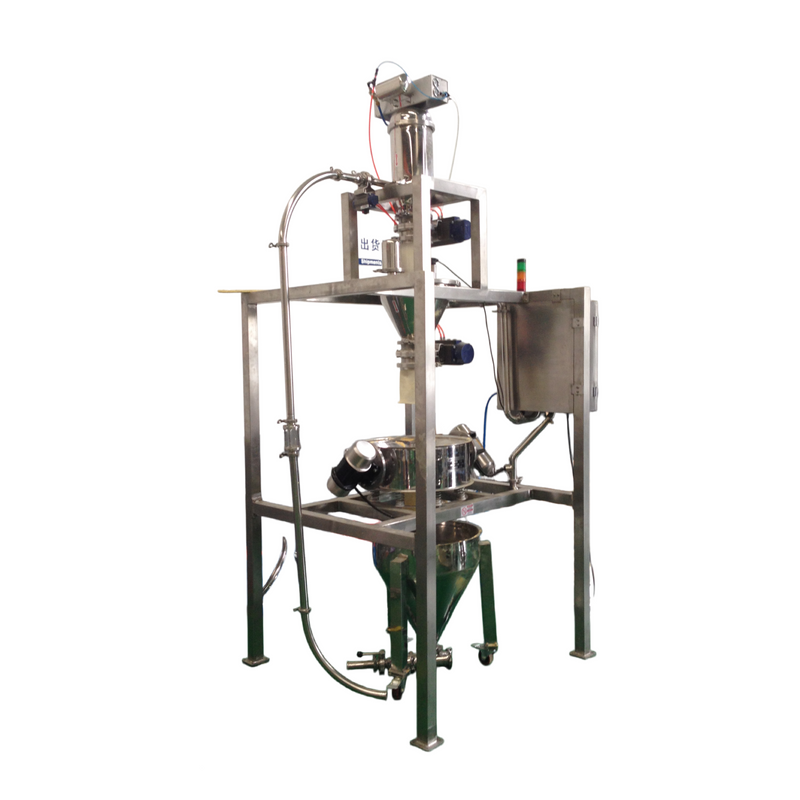

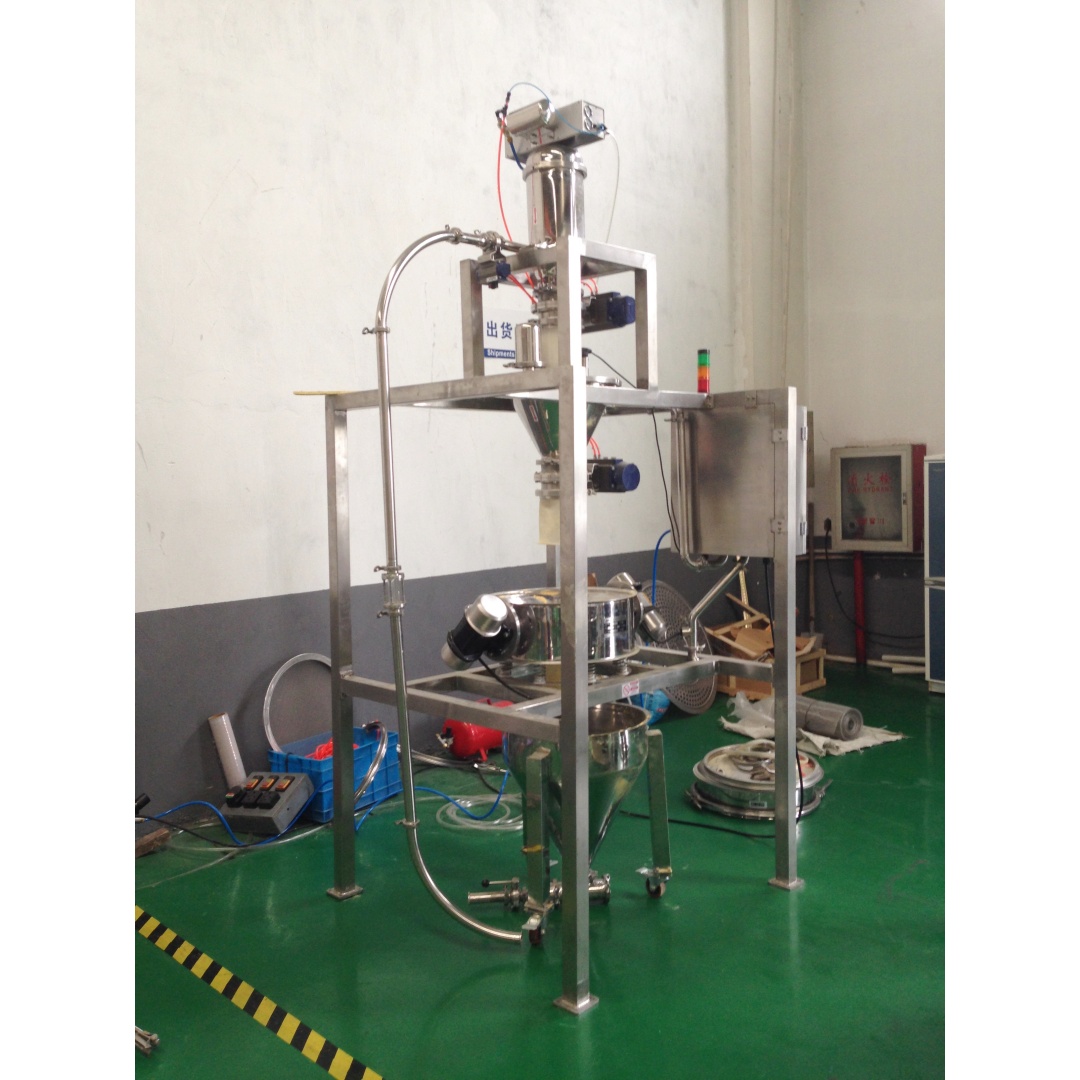

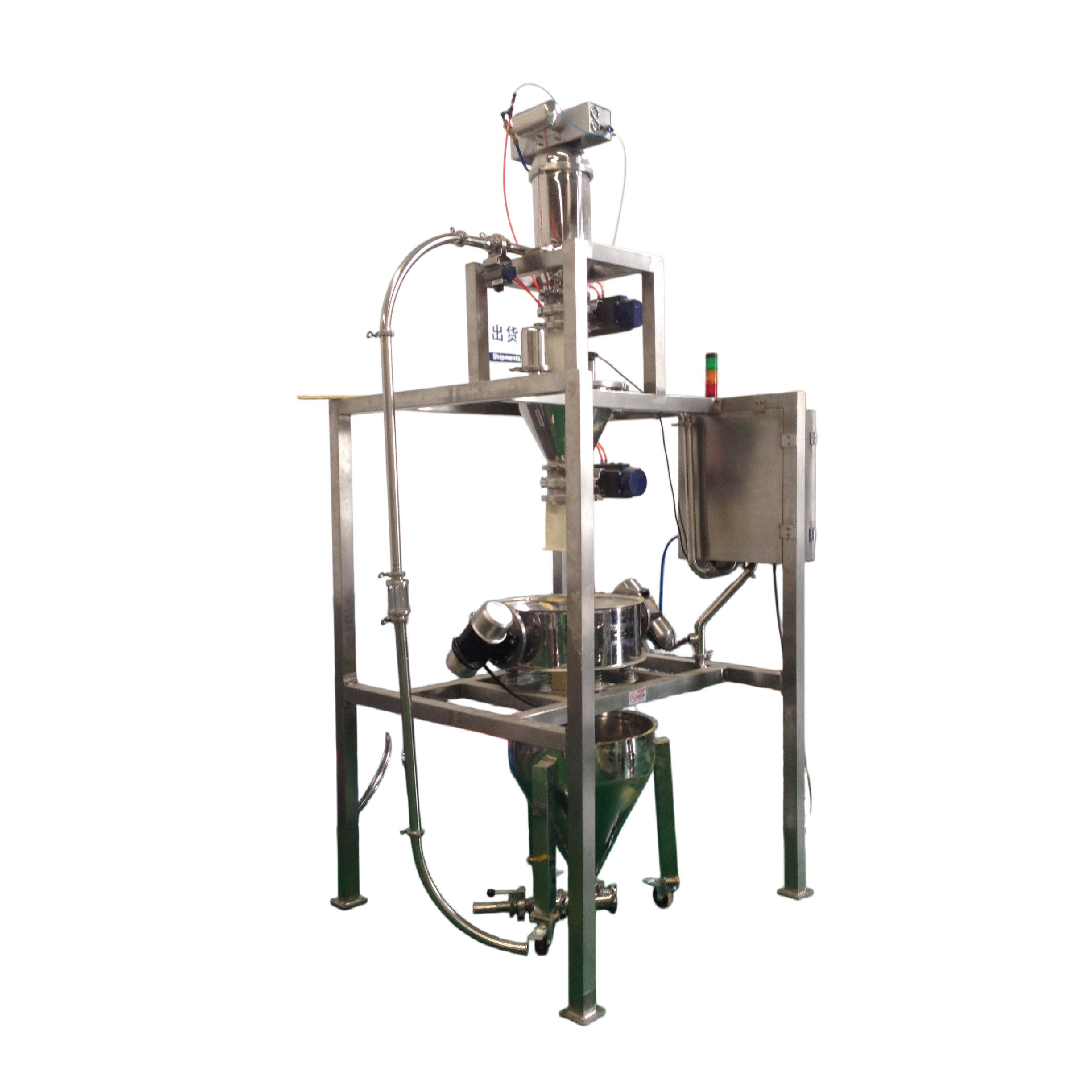

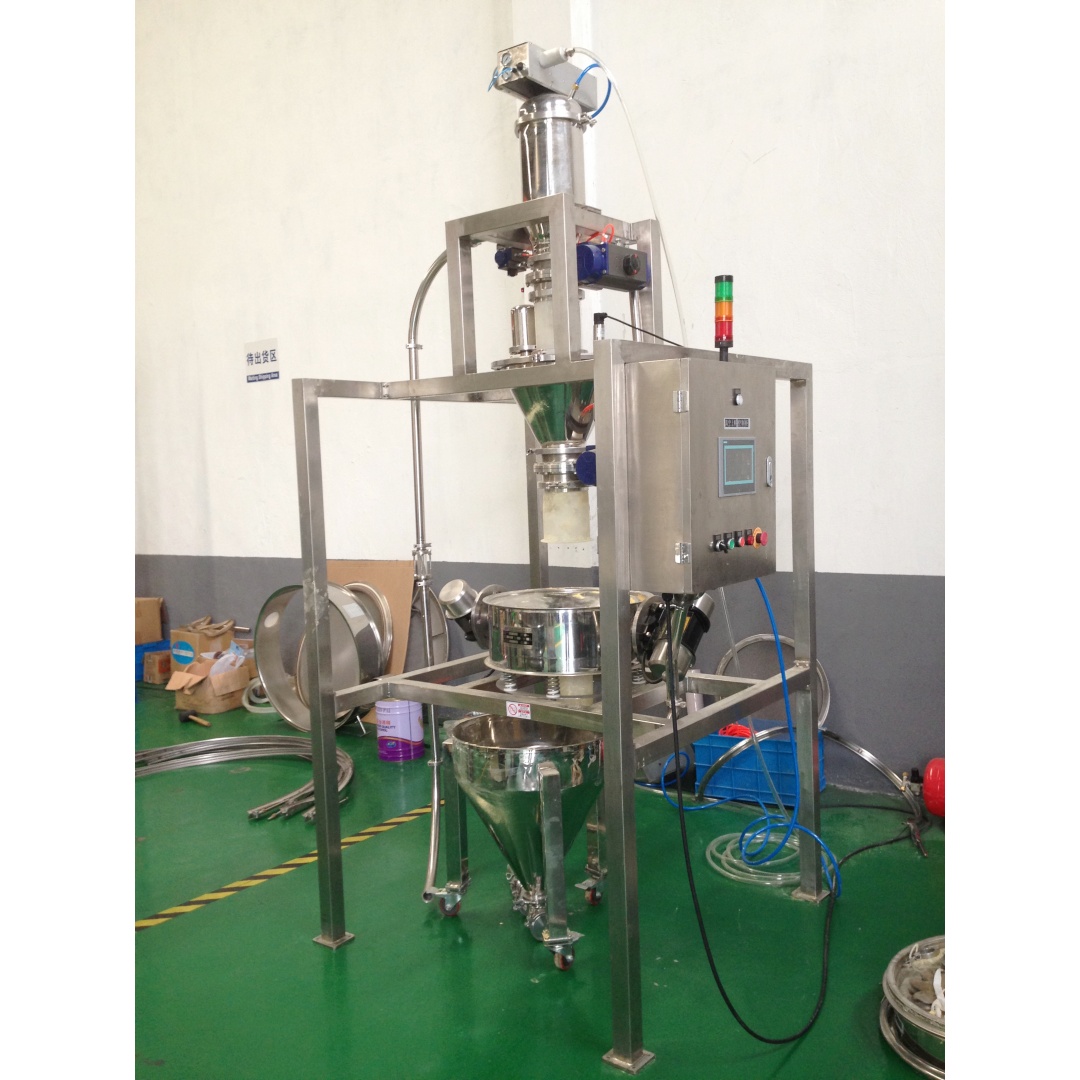

Step onto the modern production floor, and the immediate impact of the Vacuum Feeding Machine is undeniable. It operates with a quiet, rhythmic efficiency, replacing the chaotic dust clouds and physical strain of manual loading with a sleek, fully enclosed pneumatic conveying system. Crafted from flawlessly polished stainless steel, the cool, smooth exterior of the equipment speaks volumes about the uncompromising hygiene standards it upholds. When the system engages, the steady, muffled hum of the vacuum generator pulls fine powders and heavy granules effortlessly through the pipeline, safeguarding the absolute purity of every single batch.
Facility managers and production engineers immediately experience a profound transformation in operational dynamics. The constant, costly battle against material waste and cross-contamination is permanently resolved, replaced by a streamlined, automated flow that protects both the integrity of the product and the respiratory health of the personnel. By automating the transfer process, this equipment eliminates the ergonomic hazards associated with heavy lifting, allowing your workforce to focus on higher-level process oversight rather than exhausting manual labor. The tactile feedback of the responsive touchscreen interface puts total control at your fingertips, ensuring that adjustments are immediate and precise. The result is a profoundly cleaner workspace, significantly accelerated batch cycles, and a tangible reduction in maintenance downtime, ultimately driving a more profitable, compliant, and forward-thinking manufacturing operation.
| Specification Category | Technical Parameters |
|---|---|
| Product Name | Vacuum Feeding Machine |
| Conveying Capacity | 100 - 10,000 kg/h (depending on model and material characteristics) |
| Conveying Distance | Horizontal ≤ 50m, Vertical ≤ 30m |
| Material | SUS304 / SUS316L Stainless Steel (Food/Pharmaceutical Grade) |
| Control System | PLC Intelligent Control + Touch Screen |
| Filter Type | PTFE Membrane Filter / Titanium Sintered Filter / PE Filter |
| Compressed Air Pressure | 0.4 - 0.6 MPa |
| Power Supply | 220V/380V, 50/60Hz, Three-phase (Global voltage customization supported) |
| Cleaning Method | Automatic Pulse Back-blowing with compressed air |
| Discharge Valve | Pneumatic Flap Valve / Butterfly Valve |
| Certifications | CE, ISO9001, cGMP and FDA compliant |
| Applicable Materials | Powders, granules, mixed materials (Widely used in pharmaceutical, food, chemical, new energy, plastics, etc.) |
Our engineering team has meticulously designed this system to address the most pressing challenges in bulk material handling. By focusing on intelligent design and robust construction, we deliver a solution that directly enhances your bottom line.
Intelligent Material Flow: The system automatically adapts to different material densities, preventing pipeline blockages and ensuring a consistent, uninterrupted feed rate to downstream equipment.
Uncompromised Product Purity: By isolating the material from the ambient environment, the system prevents moisture ingress and airborne contaminants from compromising your sensitive formulations.
Ergonomic and Safe Operation: Eliminates the need for elevated platforms and manual lifting, drastically reducing workplace injury risks and lowering liability costs.
Rapid Deployment: Delivered as a highly modular unit, allowing your maintenance team to install, calibrate, and initiate the system with minimal disruption to ongoing operations.
Acoustic Optimization: Engineered with sound-dampening enclosures around the vacuum generation unit to maintain a comfortable, compliant acoustic environment on the factory floor.
In industries where purity is non-negotiable, the construction of your equipment is your first line of defense. The entire machine is fabricated from premium food and pharmaceutical-grade SUS304 or SUS316L stainless steel. The internal and external surfaces undergo high-precision mirror polishing, creating a flawlessly smooth finish that offers zero dead angles for bacterial growth or material residue.
Strict adherence to cGMP and FDA certification standards.
Completely eliminates the risk of secondary contamination during transit.
Perfectly suited for the stringent cleanliness protocols of the pharmaceutical and high-end food processing sectors.
Maintaining consistent vacuum pressure requires an exceptional filtration strategy. This unit is equipped with industrial-grade, high-precision filters, including PTFE membrane cartridges or sintered titanium options, which boast an incredibly high interception rate for ultrafine particles.
Integrated automatic pulse back-blowing system cleans the filters at programmed intervals.
The rhythmic burst of compressed air effectively dislodges clinging dust without halting production.
Maintains long-lasting, stable vacuum suction while drastically reducing the frequency of manual filter cleaning.
Extends the operational lifespan of the filter media, lowering consumable replacement costs.
Transform your facility from a dusty, hazardous environment into a pristine, modern workspace. Utilizing fully enclosed vacuum negative pressure conveying technology, this machine entirely eradicates the severe dust clouds and material leaks associated with outdated mechanical conveyors or manual dumping.
Significantly improves the ambient air quality of the production workshop.
Actively protects operator respiratory health and reduces housekeeping labor.
Customizable with ATEX-certified explosion-proof configurations to guarantee absolute safety when handling combustible or volatile powder mixtures.
Complex operations are simplified through advanced automation. The system integrates top-tier PLC units and highly responsive touchscreen interfaces from industry-leading brands like Siemens. Operators can effortlessly set suction times, discharge intervals, and monitor automatic level sensing with a few taps on the glass.
One-touch start/stop functionality streamlines daily operations.
Modular design utilizes quick-release tri-clamp connections for rapid access.
Allows technicians to dismantle, clean, and reassemble the entire material contact pathway in minutes without a single specialized tool.
Dramatically accelerates product changeover times, maximizing machine uptime.
A standalone machine is only as valuable as its ability to communicate with your existing line. This vacuum feeder exhibits extraordinary upstream and downstream adaptability, engineered to dock flawlessly with a vast array of processing machinery.
Seamlessly feeds into packaging machines, 3D mixers, pulverizers, injection molding machines, reactors, and tablet presses.
Highly customizable footprint to accommodate severe spatial constraints in older facilities.
Tailored capacity modifications available to sync perfectly with your specific throughput requirements, providing a holistic automated feeding architecture.
Powering your production should not drain your resources. Driven by high-efficiency pneumatic vacuum generators or robust Roots vacuum pumps, the system delivers massive conveying capacity over extended horizontal and vertical distances while keeping energy metrics remarkably low.
Pneumatic vacuum generators feature zero moving parts, requiring absolutely no lubrication.
Optimized compressed air consumption minimizes the load on your facility's utility grid.
The absence of complex mechanical gears and belts results in a failure rate and comprehensive operating cost far below traditional screw or bucket elevators.
Procuring capital equipment is a long-term partnership. As a dedicated supplier, we provide an end-to-end service ecosystem, starting from initial conceptual design and 3D layout confirmation, straight through to on-site commissioning and comprehensive operator training.
Solid 1 to 2-year warranty on all core operational components.
Global rapid-response spare parts inventory ensures minimal downtime in the event of wear.
Lifetime technical consulting and troubleshooting support, granting facility managers complete peace of mind.
Selecting the right manufacturing partner is critical to scaling your operations securely. We do not just supply machinery; we engineer reliability into the very fabric of your production line. Our deep understanding of complex material handling challenges allows us to foresee potential bottlenecks before they occur.
Decades of Engineering Pedigree: Our design teams possess extensive experience across the pharmaceutical, chemical, and food processing sectors, ensuring every machine is built to industry-specific realities.
Rigorous Quality Assurance: Every unit undergoes exhaustive factory acceptance testing (FAT) using simulated materials to guarantee flawless performance upon arrival at your facility.
Agile Customization: We own our manufacturing process end-to-end, allowing us to execute complex, non-standard modifications faster than industry averages.
Transparent Supply Chain: From the sourcing of premium SUS316L steel to the integration of Siemens electronics, we maintain absolute traceability and quality control over every component.
The pulse back-blowing system utilizes highly pressurized, localized bursts of compressed air directed into the core of the filter cartridge. This sudden acoustic and kinetic shockwave instantly dislodges caked powder from the exterior membrane, allowing the material to fall into the discharge valve. Because this happens automatically in fractions of a second between suction cycles, the vacuum generator never experiences a drop in airflow, ensuring consistent, high-capacity throughput without manual intervention.
Yes. For highly cohesive materials that tend to bridge or rat-hole, we integrate specialized fluidization pads and pneumatic vibrators near the discharge valve to ensure smooth material flow. Furthermore, because the system operates in a fully enclosed environment, using dried compressed air or inert nitrogen gas as the motive force completely protects moisture-sensitive powders from ambient humidity during the transfer process.
To ensure optimal performance and longevity of the pneumatic components, the facility must provide a stable compressed air supply regulated between 0.4 and 0.6 MPa. Crucially, the air must be clean, dry, and oil-free. We highly recommend installing an inline desiccant dryer and a coalescing filter upstream of the machine to prevent moisture and compressor oil from fouling the internal pneumatic valves or contaminating the filter media.
The entire material contact pathway is engineered using sanitary quick-release clamps rather than bolted flanges. A single operator can break down the machine into its core modular components—the lid, filter plate, main barrel, and discharge valve—in under five minutes using only their hands. This tool-free dismantling allows for rapid, thorough washdowns and sterilization, drastically reducing the labor hours required for product changeovers and ensuring strict cross-contamination compliance.
Absolutely. For facilities handling explosive powders (such as certain chemicals, metal powders, or organic dusts), we provide fully ATEX-certified configurations. This includes the use of conductive, anti-static PTFE filters, comprehensive grounding lugs across all modular joints to dissipate static electricity, and the utilization of purely pneumatic vacuum generators that eliminate electrical sparking risks entirely within the hazardous zone.
