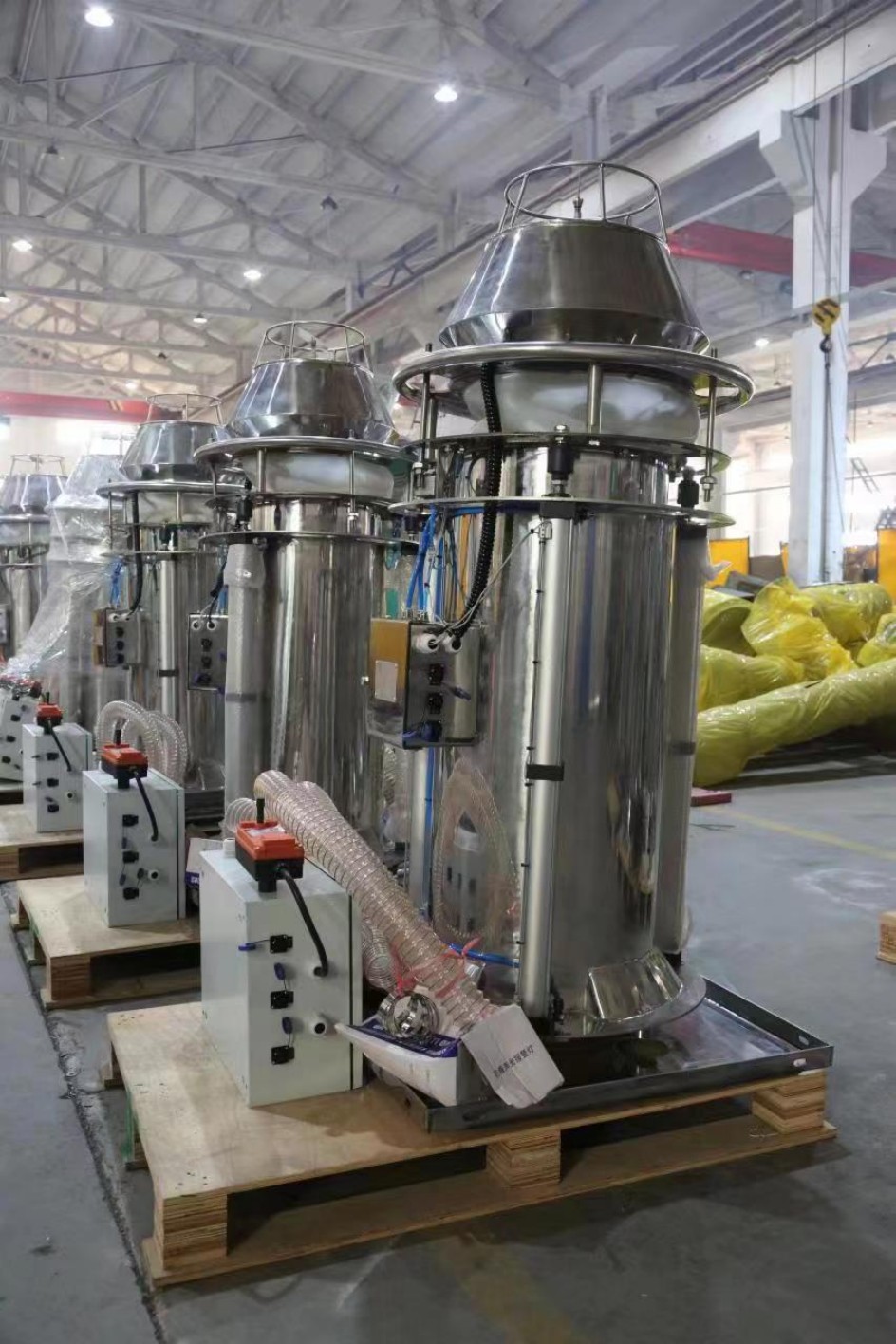

The Tank Truck Loading Hose represents the pinnacle of bulk powder distribution engineering, meticulously crafted for the rigorous demands of modern milling and processing facilities. When transferring fine particulates like flour, corn starch, or specialized powder materials, the flow must be continuous, unimpeded, and entirely contained. This specialized equipment features a robust, all-stainless steel architecture that gleams with a polished finish, ensuring that the internal pathways remain exceptionally smooth. As the material cascades through the inner conduit, there is no friction or static buildup to hinder the output, guaranteeing zero material residue within the loader once the distribution cycle concludes.
Beyond its striking metallic profile, the system hums with precision pneumatic power, orchestrating a fluid, automated descent into the tanker hatch. The tactile feedback of the remote control allows operators to command the entire loading sequence from a safe distance, watching as the cone-shaped outlet perfectly nests into the receiving port. Every aspect of this loader is engineered to transform a traditionally messy, labor-intensive process into a streamlined, highly efficient operation that safeguards both the product's integrity and the facility's atmospheric purity.
| Model | Expansion length | Expansion speed | Air Pressure | Aspiration | Dimension |
| ZCG | 600~1000mm | 0.08 m/s | 0.3~0.5 Mpa | 600m3/h | 1000x1000x1860mm |

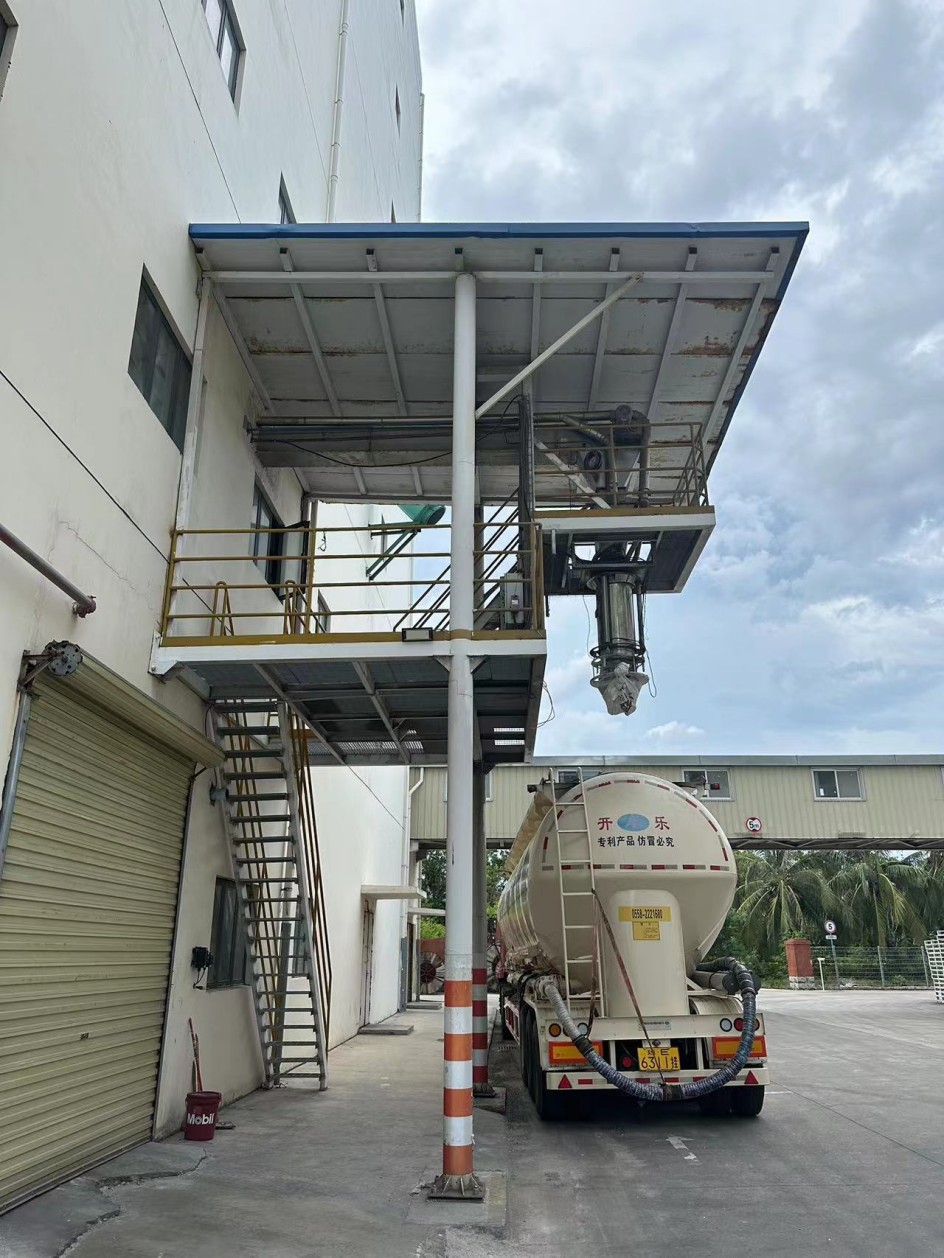

Flour mill: flour loader are used to bulk loading the flour into tank truck.
Elevate your bulk material handling capabilities with a loading system that prioritizes operational fluidity and environmental safety. Our equipment is not merely a conduit; it is an intelligent distribution hub designed to eliminate the common bottlenecks associated with fine powder transfer.
Intelligent Material Flow: The interior surfaces are meticulously polished to prevent bridging or arching, ensuring a massive output volume without any lingering residue.
Dual-Action Architecture: A sophisticated double tube structure dispenses the powder centrally while aggressively vacuuming displaced dust through the peripheral suction port.
Automated Precision: Outfitted with highly responsive proximity and level switches, the pneumatic system autonomously dictates the discharge rate and vertical lifting, preventing overflow.

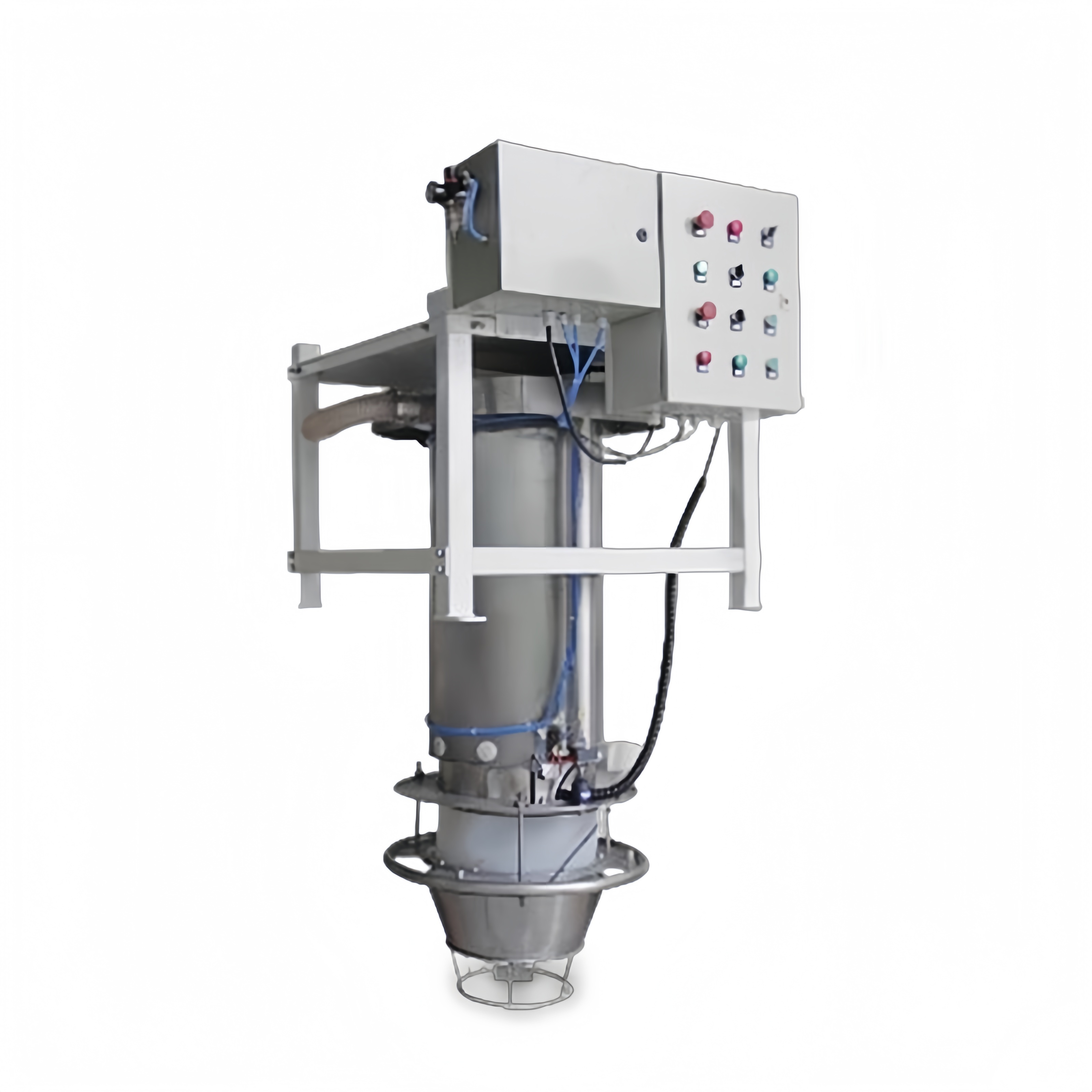

Remote Accessibility: A comprehensive control box paired with a wireless remote control mode grants operators total command over the loading sequence from any vantage point on the floor.
Compact Footprint: Despite its impressive expansion ratio, the novel structural design requires minimal installation space, preserving valuable overhead clearance.
When processing consumables like flour, starch, and corn flour, uncompromising hygiene is the absolute baseline. This loading system is forged entirely from high-grade stainless steel, presenting an impenetrable barrier against contamination, moisture, and microbial growth, perfectly suited for strict sanitary environments.
Sanitary Construction: The all-stainless steel framework resists corrosion and withstands rigorous cleaning protocols, ensuring long-term compliance with stringent food safety mandates.
Seamless Internal Geometry: Engineered without blind spots or rough welds, the smooth internal conduit guarantees that every ounce of powder is transferred, eliminating cross-contamination between different product batches.
Preservation of Product Purity: By sealing the transfer environment, the material retains its exact moisture content and purity from the silo directly into the transit vehicle.
Regulatory Alignment: The material composition and structural integrity are designed to align seamlessly with international food-grade processing standards, providing total peace of mind for facility managers.
Fine powders are notoriously volatile during rapid transit, posing severe risks to both respiratory health and facility safety. This equipment neutralizes these threats through an aggressive, integrated aspiration strategy that captures airborne particulates before they can escape into the ambient air.
Advanced Double Tube Design: The ingenious concentric tube layout isolates the falling powder in the center while creating a powerful upward draft in the outer ring to capture displaced air and dust.
High-Capacity Aspiration: Drawing an impressive 600m3/h of air, the dedicated suction port acts as a vacuum shield, instantly separating and removing hazardous dust clouds from the loading zone.
Explosion Mitigation: By preventing the accumulation of combustible dust in the surrounding atmosphere, the system drastically reduces the risk of catastrophic powder explosions, aligning with strict environmental safety protocols.
Pristine Workspace: Operators are protected from inhalation hazards, and the surrounding machinery is spared from abrasive dust settling, significantly reducing overall facility cleaning requirements.
Time is a critical metric in high-volume distribution. This loading hose transforms a manual, time-consuming chore into a rapid, self-regulating process that maximizes the throughput of your loading bays while minimizing human intervention and operational errors.
Pneumatic Agility: The heavy-duty pneumatic control system drives the rapid expansion and retraction of the loading pipe at a steady 0.08 m/s, shaving valuable minutes off every vehicle turnaround.
Smart Level Detection: Integrated level switches act as the system's eyes, automatically halting the material discharge the exact moment the tanker reaches maximum capacity, completely eliminating wasteful spills.
Proximity Sensing: Highly calibrated proximity switches ensure the nozzle stops at the perfect depth within the hatch, preventing mechanical collisions and costly equipment damage.
Labor Optimization: With fully automatic control over material discharge and lifting, a single operator can seamlessly manage multiple loading bays simultaneously via the intuitive remote control mode.
Transit vehicles arrive in various shapes and configurations, demanding a loading interface that can adapt on the fly. Our system is engineered to create an infallible seal with virtually any receiving port, locking in the product and locking out ambient contaminants.
Universal Cone Outlet: The discharge nozzle is meticulously shaped into a tapered cone, allowing it to naturally self-center and nestle deeply into hatches of varying diameters.
Hermetic Sealing: Once lowered into position, the weight and geometry of the cone create a tight, gasket-like seal against the truck's inlet, preventing any pressurized blowback during high-speed filling.
Zero-Leakage Guarantee: By securing the connection point, the system ensures that high-velocity powder streams remain entirely within the intended vessel, protecting your profit margins from wind loss.
Dynamic Alignment: The flexible nature of the expansion joint forgives slight misalignments in truck parking, ensuring a perfect connection without requiring the driver to constantly reposition the vehicle.

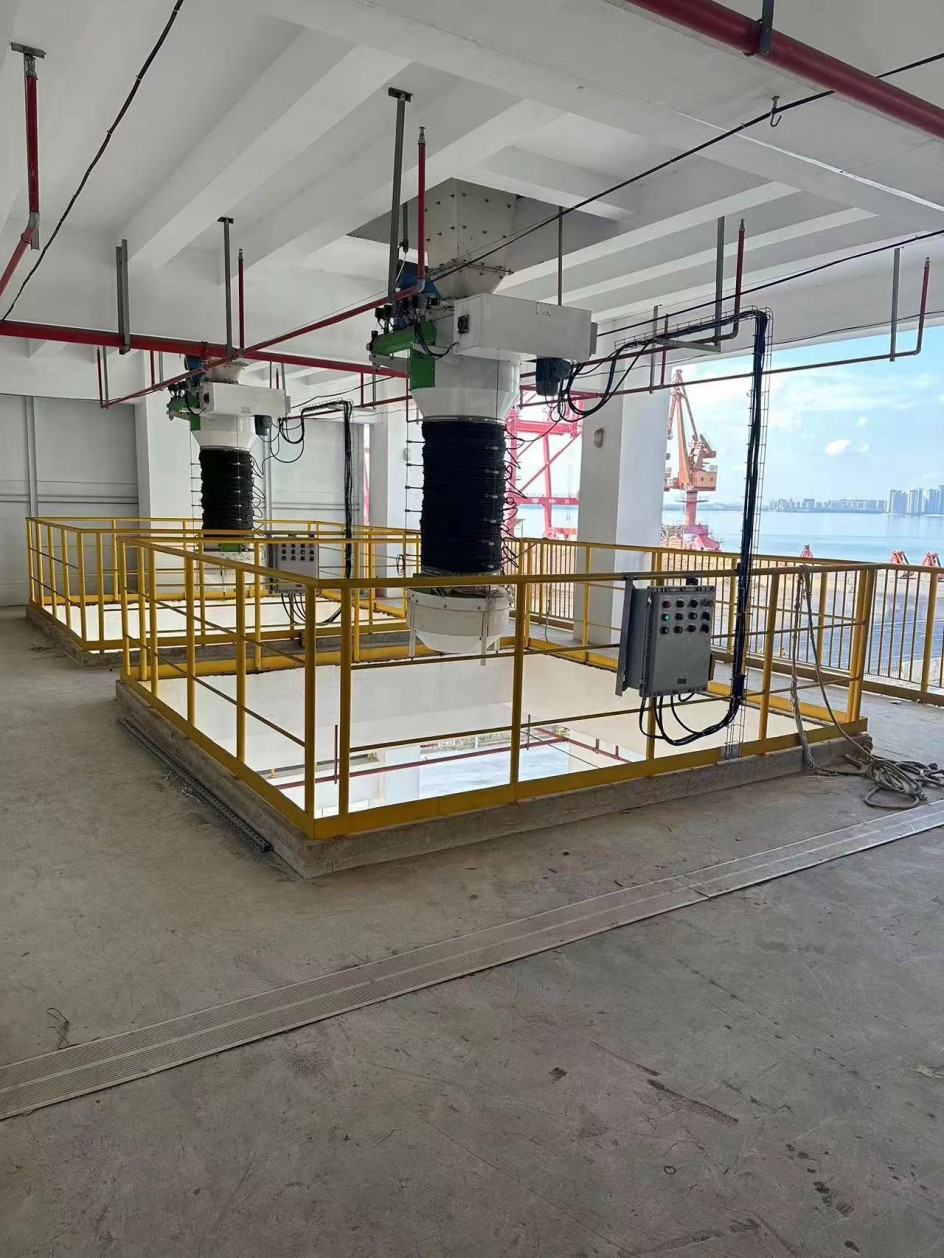

Industrial loading zones are often congested environments where every square meter of overhead and floor space is highly valued. This equipment is architected to deliver massive reach without monopolizing your facility's spatial footprint, ensuring smooth logistical traffic.
Exceptional Expansion Ratio: Capable of stretching from a compact retracted state down to a full 1000mm extension, it easily bridges the vertical gap between elevated silos and low-profile tankers.
Compact Dimensions: Measuring just 1000x1000x1860mm in its resting state, the unit tucks neatly beneath hoppers, leaving ample clearance for vehicle traffic and maintenance access.
Novel Retraction Mechanism: The internal structural guides ensure that the hose collapses smoothly and uniformly, preventing the binding or twisting that frequently plagues inferior accordion-style loaders.
Robust Stability: Despite its flexible reach, the rigid upper housing and reinforced mounting flanges ensure absolute stability even when operating under maximum air pressure of 0.3 to 0.5 Mpa.
A truly superior industrial asset is one that operates relentlessly with minimal upkeep while communicating flawlessly with your facility's existing infrastructure. We designed this loading hose to be a low-maintenance powerhouse that easily integrates into modern plants.
Wear-Resistant Components: The premium stainless steel construction drastically outlasts conventional materials, shrugging off the abrasive friction generated by thousands of tons of flowing starch and flour.
Accessible Pneumatics: The air pressure regulators and pneumatic cylinders are positioned for immediate access, allowing technicians to perform routine checks without dismantling the core structure.
Seamless Control Integration: The provided control box is wired with standard industrial protocols, making it exceptionally straightforward to tie into your plant's central DCS or PLC networks for centralized monitoring.
Simplified Cleaning: Because the system guarantees no material residue post-distribution, the need for intensive, manual washdowns between identical product runs is virtually eliminated, maximizing your operational uptime.
Sourcing critical infrastructure requires a partner who understands the profound impact of equipment reliability on your bottom line. As an elite manufacturer and dedicated supplier, we engineer solutions that drive tangible operational improvements for procurement teams globally.
Uncompromising Quality Control: Every loading unit undergoes rigorous pneumatic testing and structural stress analysis before it ever leaves our production floor, ensuring flawless out-of-the-box performance.
Deep Industry Expertise: With years of specialized focus on bulk powder dynamics, we understand the exact flow characteristics of flour, starch, and complex particulates.
Direct-from-Source Value: By partnering directly with the manufacturer, you secure premium, high-capacity distribution equipment while optimizing your capital expenditure.
Comprehensive Support: From initial dimension consulting to remote troubleshooting of the control box, our technical team stands ready to ensure your loading bays operate at peak efficiency year-round.
To assist your engineering and procurement teams in evaluating this equipment, we have compiled detailed answers to the most critical operational inquiries regarding our loading systems.
How does the double tube structure prevent dust explosions?
By utilizing a dedicated 600m3/h aspiration channel in the outer tube, the system immediately evacuates airborne particulates generated during the material drop. This prevents the dust concentration from reaching the lower explosive limit (LEL) in the ambient air, significantly enhancing facility safety.
Can the loading hose accommodate different truck heights?
Absolutely. The unit features a substantial expansion length ranging from 600mm to 1000mm. Driven by a pneumatic cylinder at a steady speed of 0.08 m/s, it easily adjusts vertically to mate perfectly with various tanker profiles.
What prevents the tank truck from overflowing during a high-speed fill?
The system is equipped with highly sensitive level switches located near the discharge cone. Once the rising powder touches the sensor, it instantly signals the control box to halt the material flow and begin the automatic lifting sequence, preventing any spillage.
Is the internal pathway truly free of material residue?
Yes. The all-stainless steel structure is fabricated with ultra-smooth internal faces and a vertical-drop geometry. Without internal ledges or rough seams, gravity and the lack of friction ensure that entirely all of the flour or starch is dispensed into the tanker.
What are the air supply requirements for the pneumatic controls?
The pneumatic control system operates optimally within an air pressure range of 0.3 to 0.5 Mpa. This requirement is highly standard and can be easily met by the industrial air compressors already present in most processing facilities.
How is the equipment operated on the floor?
Operators can manage the entire process via the main control box or utilize the convenient remote control mode. The remote allows the operator to monitor the cone's alignment with the truck inlet from the best possible visual vantage point, ensuring a perfect seal every time.
