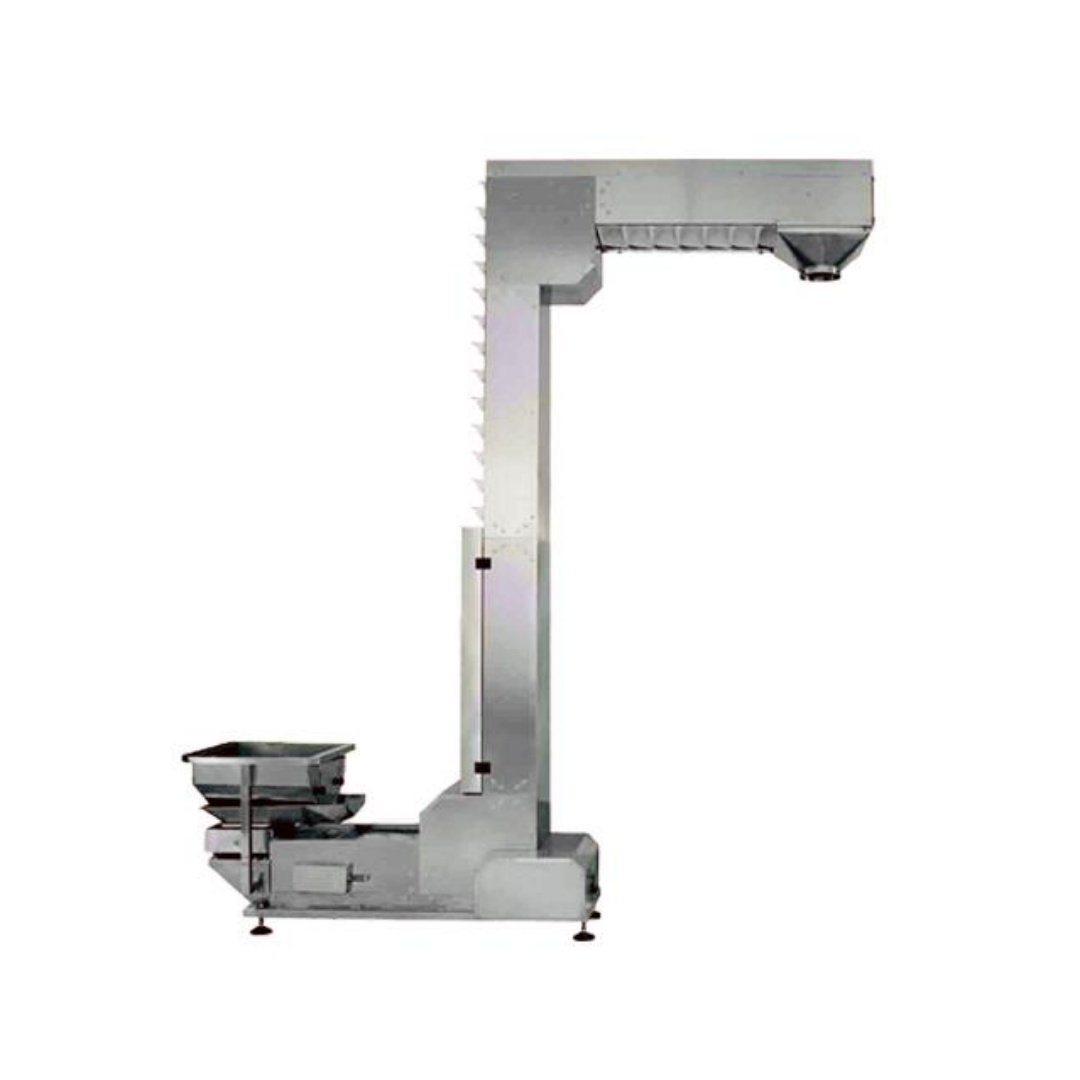

The Z-type Bucket Elevator represents the pinnacle of gentle material handling, specifically engineered to transport delicate, granular, and powdery materials with uncompromising precision. When standing beside the machinery, the immediate impression is one of robust, industrial-grade craftsmanship; the cool, flawlessly polished surface of the food-grade 304 stainless steel framework speaks directly to its hygienic superiority and structural integrity. As the system operates, the high-precision gear transmission emits a remarkably subdued, rhythmic hum, consistently registering at a whisper-quiet 65 decibels or less, ensuring a comfortable and highly focused auditory environment on the factory floor. Unlike conventional conveying systems that aggressively force materials through abrasive and confined pathways, this elevator cradles your valuable product within secure, individual buckets, lifting them smoothly along a customized Z-shaped trajectory. This meticulous handling eliminates the friction, grinding, and impact that typically cause severe product degradation, preserving the exact texture, shape, and integrity of your materials from the intake hopper to the final discharge point. By integrating this fully enclosed conveying solution, facility managers can instantly resolve chronic operational issues of airborne dust and cross-contamination, transforming a chaotic processing area into a pristine, highly efficient hub. The equipment does far more than simply move material; it actively safeguards your product quality, minimizes expensive waste, and significantly elevates the overall hygiene and safety standards of your entire production environment.
Model | Bucket Width | Capacity | Dimension |
DGS1000 | 225mm | 3m3/h | Any length & height are available. |
DGS2000 | 420mm | 6m3/h | |
DGS2500 | 528mm | 8m3/h | |
DGS5500 | 486mm | 16m3/h | |
DGS8000 | 704mm | 24m3/h |
1. Food Industry: Ideal for lifting and conveying powdery (flour, milk powder, starch) and granular (sugar, cereal, dried fruit) food materials, ensuring hygienic and pollution-free transportation, fully complying with food safety standards.
2. Pharmaceutical Industry: Suitable for conveying pharmaceutical raw material powder, Chinese medicine particles and auxiliary materials, meeting GMP standards, avoiding cross-contamination and ensuring the purity of materials.
3. Chemical Industry: Applicable to lifting non-corrosive or weakly corrosive fine chemical powders (pigment, catalyst, chemical additives) and small block materials, with stable performance and no material leakage.
4. Automated Production Lines: Seamlessly integrated into food, pharmaceutical and chemical automated production systems, responsible for material transfer between mixing, packaging, storage and other processes, improving production efficiency.
Engineered to overcome the most demanding material handling challenges, this conveying system integrates advanced mechanical principles with practical, daily operational needs. Every component is meticulously selected to maximize your facility's uptime and protect your operational bottom line.
Whisper-Quiet Operation: The high-precision gear transmission system keeps ambient noise strictly below 65dB, drastically reducing operator auditory fatigue and creating a significantly safer, more focused workplace environment.
Uncompromising Cleanliness: Constructed entirely from premium food-grade 304 stainless steel, the smooth, non-porous surfaces actively resist corrosive elements and allow for rapid, thorough washdowns between production batches.
Intelligent Speed Control: Featuring a highly responsive adjustable lifting speed mechanism (0.5 to 3 m/min), allowing facility managers to perfectly synchronize the material feed rate with downstream processing equipment.
Extended Operational Lifespan: Built for continuous, rigorous industrial use, the heavy-duty mechanical components and wear-resistant buckets ensure a highly reliable service life spanning 8 to 10 years, maximizing your return on investment.
Dust-Free Enclosure: The fully sealed architectural housing traps microscopic particles inside the casing, protecting sensitive respiratory health on the floor and preventing hazardous explosive dust accumulation in the facility.
For procurement managers and facility engineers in the food processing and pharmaceutical sectors, equipment hygiene is a non-negotiable priority. This elevator is meticulously crafted to eliminate contamination risks at the very source of material transfer.
Constructed with premium food-grade 304 stainless steel, offering exceptional, long-lasting resistance to chemical corrosion, moisture, and acidic food profiles.
Seamlessly complies with stringent GMP and international food safety standards, allowing your facility to pass rigorous sanitation audits with absolute confidence.
The exceptionally smooth interior finish prevents material adhesion, ensuring that no microscopic residue is left behind to harbor bacterial growth.
Facilitates rapid, high-pressure washdowns and sanitization protocols, significantly reducing labor hours and turnaround times during critical product changeovers.
Protecting the structural integrity of high-value, fragile materials—such as roasted nuts, pharmaceutical capsules, or delicate chemical flakes—is the core competency of this specific design architecture.
The enclosed Z-shaped pathway cradles materials securely in individual buckets, entirely preventing the crushing, shearing, and grinding common in screw or pneumatic conveyors.
Achieves an impressive engineering milestone by avoiding 99% of material damage, ensuring your final product reaches the packaging line in visually and structurally pristine condition.
The ultra-smooth, high-precision gear transmission eliminates jerky, sudden movements, providing a fluid, continuous ascent that keeps fragile items completely intact.
Completely sealed housing prevents any dust leakage, maintaining a spotless facility while recovering valuable fine powders that would otherwise be lost to the atmosphere as waste.
Selecting the right equipment manufacturer is just as critical as the machinery itself. We are deeply dedicated to empowering industrial facilities with material handling solutions that drive tangible operational improvements and long-term profitability.
Direct Manufacturer Advantage: By bypassing intermediaries, we provide premium-grade, heavy-duty machinery at highly competitive price points, ensuring your capital expenditure yields maximum value.
Stringent Quality Assurance: Every single elevator undergoes rigorous factory acceptance testing (FAT), simulating your actual load conditions to guarantee flawless performance upon installation.
Bespoke Engineering: We do not believe in one-size-fits-all. Our engineering team collaborates directly with your facility managers to draft custom blueprints that perfectly align with your unique spatial and throughput requirements.
Comprehensive Lifecycle Support: From initial technical consultation and CAD modeling to installation guidance and rapid spare parts dispatch, our support ensures your line never stops moving.
Proven Global Track Record: Trusted by leading food processing, chemical, and pharmaceutical facilities worldwide to handle their most sensitive and valuable materials with absolute precision.
Review these common technical inquiries to better understand how our advanced conveying solutions can be seamlessly integrated into your specific production environment.
The optimized Z-shaped configuration allows for both horizontal and vertical conveying within a single, continuous unit. This entirely eliminates the need for multiple transfer points and drop zones, which is exactly where material degradation and dust generation typically occur. Furthermore, this compact, unified design saves up to 30% of floor space compared to conventional inclined systems, making it ideal for tight facility layouts.
Our standard models are constructed entirely from high-grade 304 stainless steel, which offers exceptional resistance to mildly corrosive, damp, and acidic environments, making them perfect for food and pharmaceuticals. If your facility processes highly abrasive or severely corrosive chemical applications, our engineering team can customize the bucket materials and housing specifications to withstand those extreme operational requirements.
The system is engineered with uncompromising hygiene in mind. It features strategically placed inspection and cleaning access doors along the casing. The food-grade 304 stainless steel interior is exceptionally smooth, preventing fine powder or sticky material buildup. Operators can easily perform dry wiping, compressed air blowdowns, or even specific low-pressure washdowns depending on your facility's strict sanitation protocols.
Yes, absolutely. One of the primary advantages of our custom engineering capabilities is the ability to install multiple discharge outlets along the upper horizontal section of the elevator. These distinct outlets can be controlled via automated pneumatic valves, allowing you to selectively feed different silos, industrial mixers, or separate packaging lines from a single intake point.
The equipment is designed with an intelligent modular framework. Even for highly customized heights and lengths, the sections are pre-assembled and rigorously tested in our manufacturing facility before shipping. They arrive at your site in manageable, clearly labeled modules that bolt together seamlessly. This plug-and-play approach requires minimal specialized lifting equipment and significantly reduces onsite installation time and labor costs.
